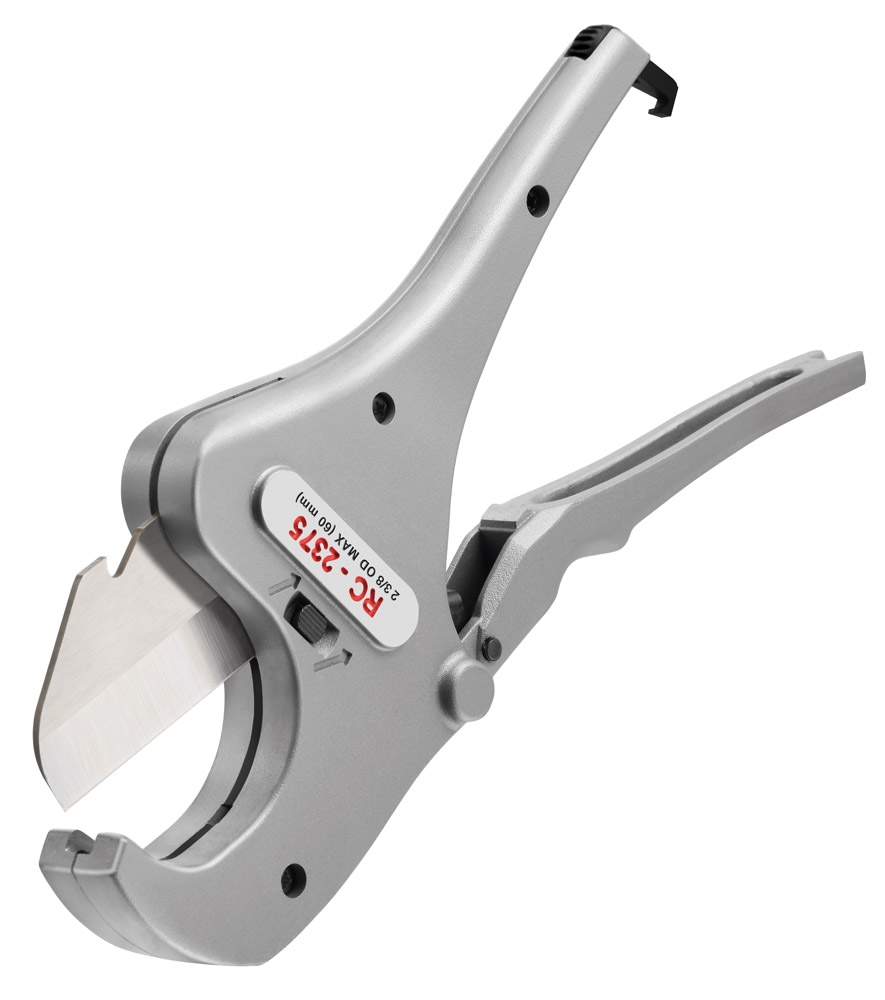

Plastic Pipe Cutters
Pressing Tools
Construction Hoists

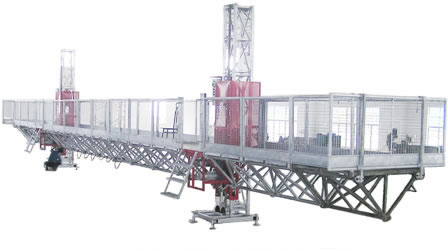

Platforms
Chain Hoists

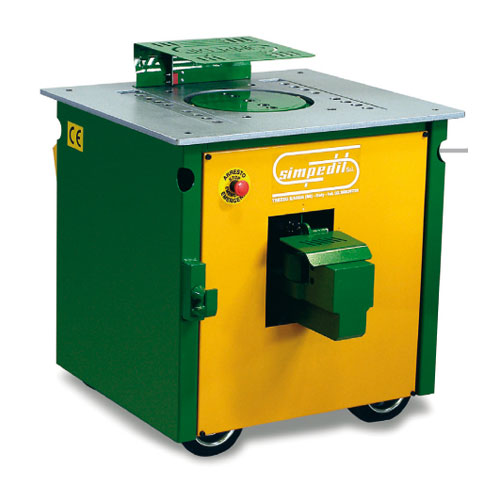

Bar Benders/ Cutters

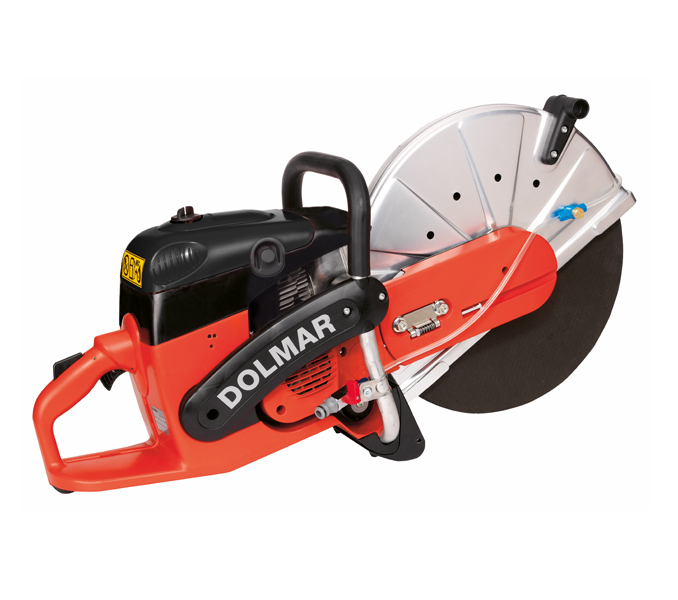

Power Cutters
Table Saws
Cutting Disks
Grinding & Polishing Machines
Steps Polishing Machines

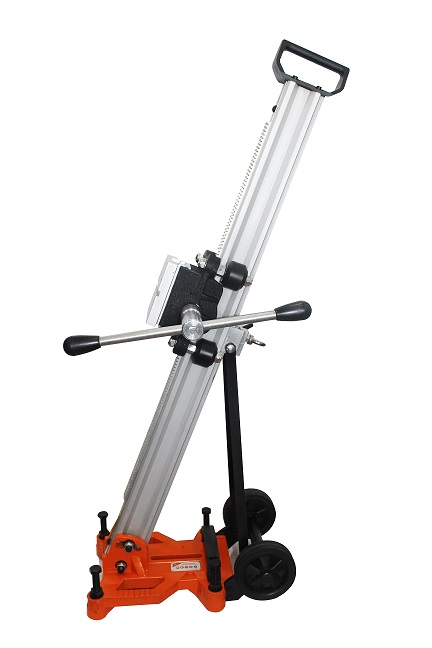

Diamond Core Drills
Wall Cutters

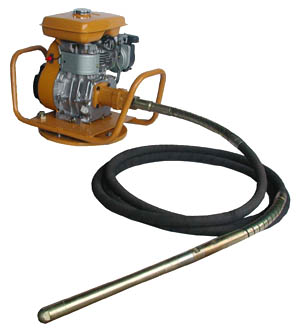

Concrete Vibrators
This is blank

TKT-36A
TKT-40A
VDPT-700

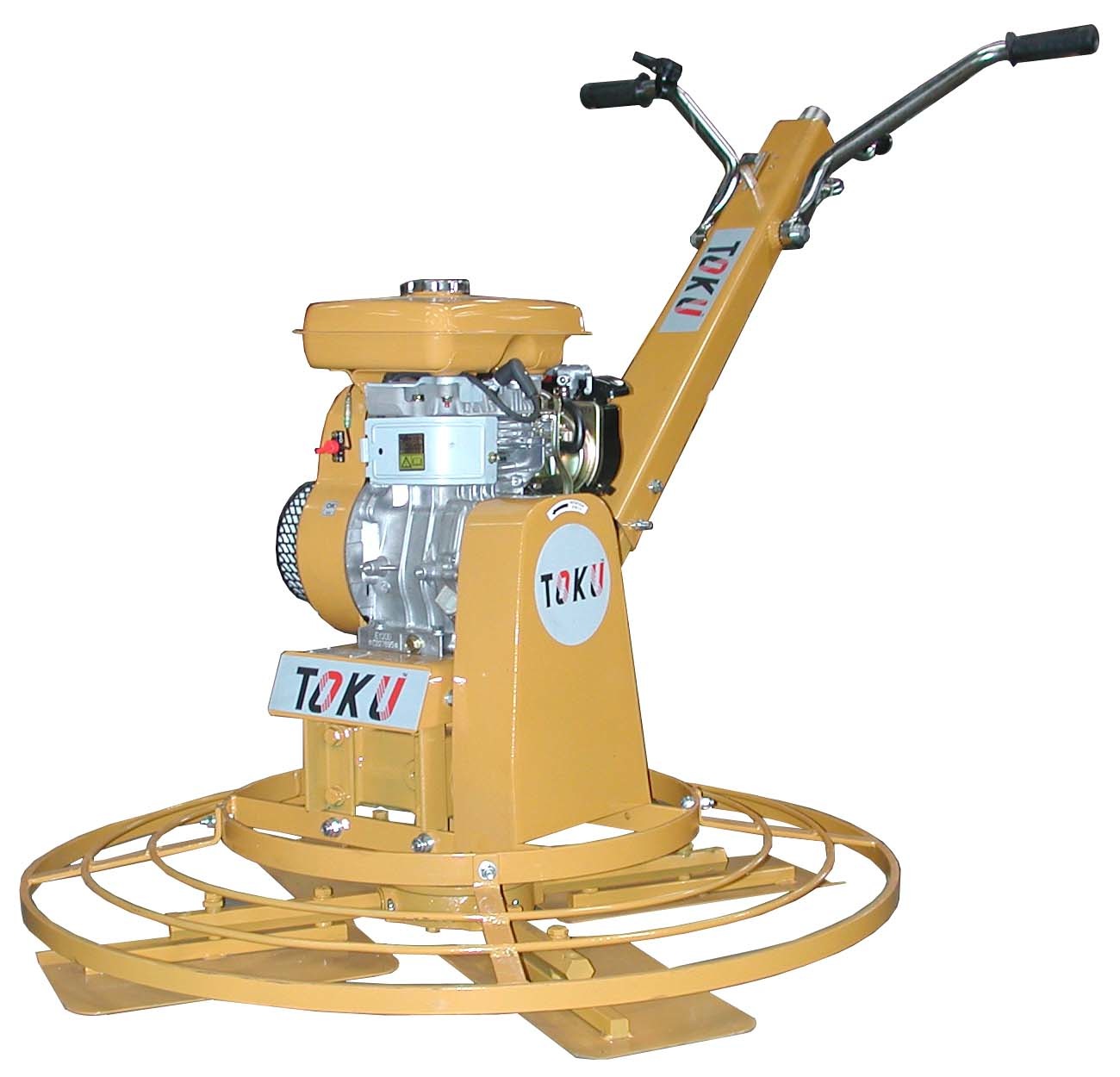

TKT-36A

Technical Specifications:
Throwel Diameter (mm): 910
Blade Dimension LxW (mm): 343x205
Throwel Speed (rpm): 50-100
Engine: EY-20D
Engine Type: Air-Cooled Gasoline
Power Output (hp/rpm): 5/4000
Starting System: Recoil
Dimensions LxWxH (mm): 1600x1010x865
Weight (kg): 88

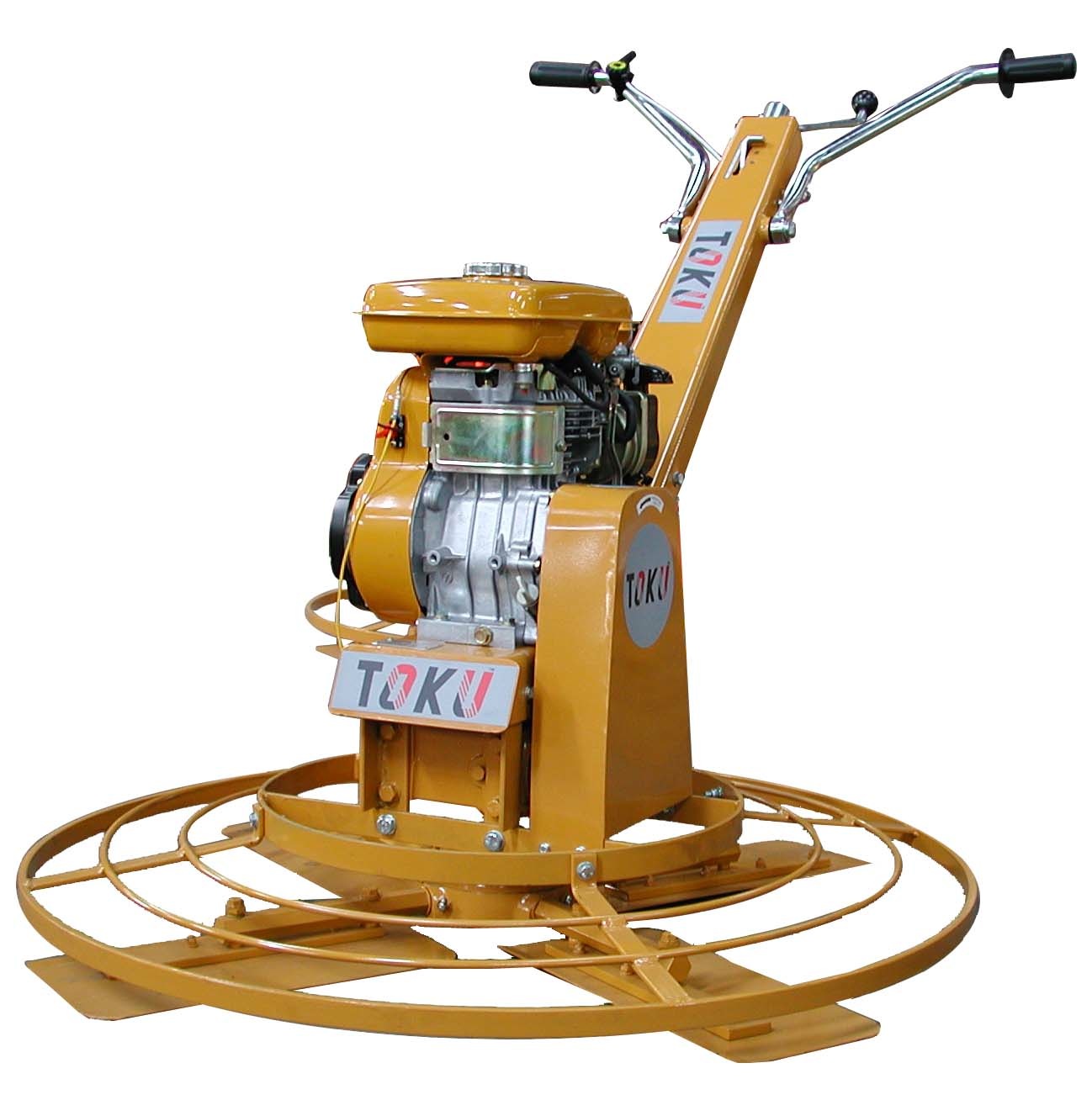

TKT-40A

Technical Specifications:
Throwel Diameter (mm): 1016
Blade Dimension LxW (mm): 411x190
Throwel Speed (rpm): 50-100
Engine: EY-28D
Engine Type: Air-Cooled Gasoline
Power Output (hp/rpm): 7.5/4000
Starting System: Recoil
Dimensions LxWxH (mm): 1600x1055x865
Weight (kg): 95

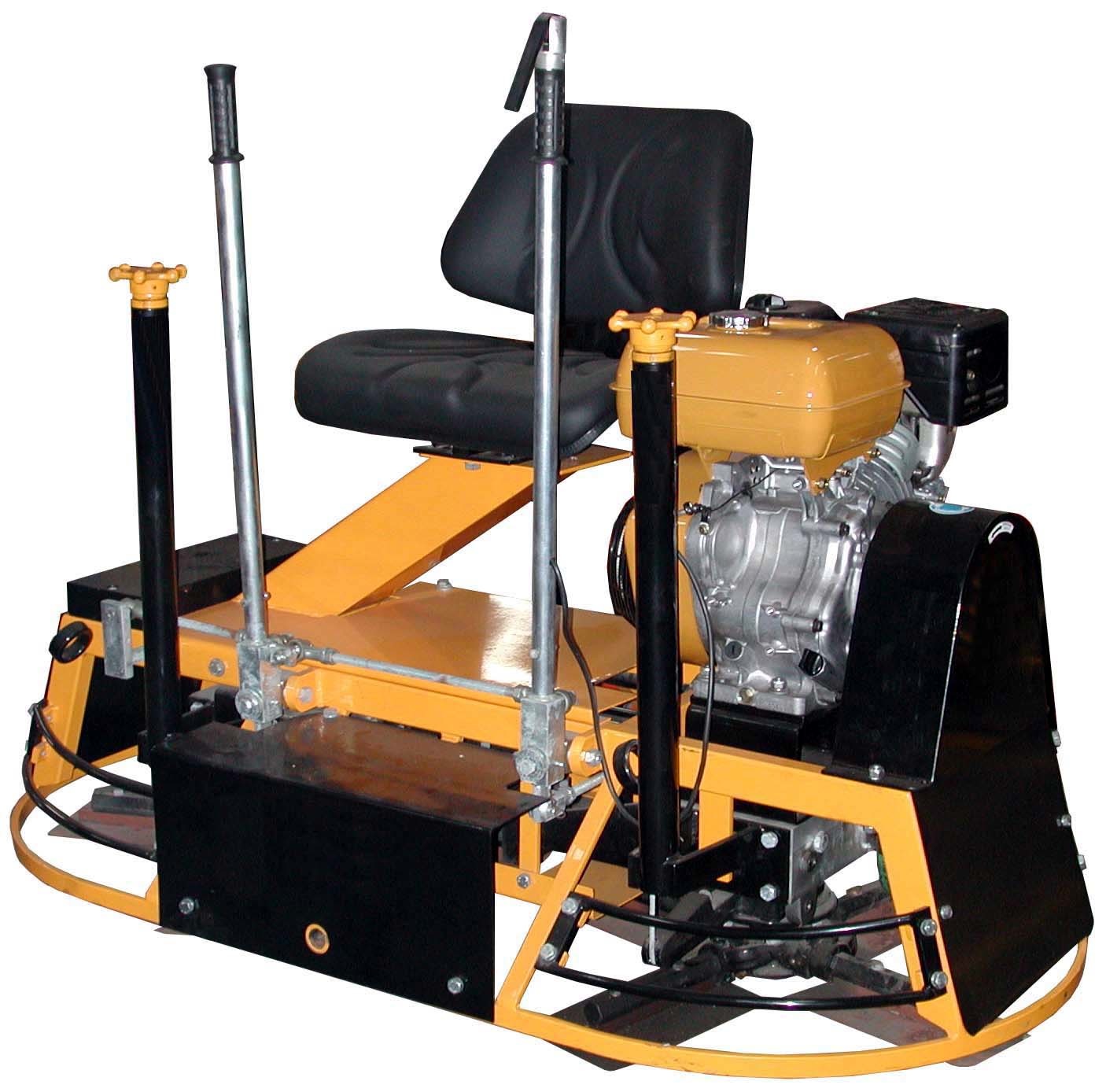

VDPT-700

Technical Specifications:
Throwel Diameter (mm): 2 x 700
Blade Dimension (L x W) (mm): 270 x 150
Trowel Speed (rpm): 130
Engine: Honda GX-390
Max Output (hp/rpm): 13/ 4000
Weight: 215 Kg
Dimension: (LxWxH) (mm): 1530 x 820 x 1170

TKP-60
TKL-80
TKP-90
TKP-110

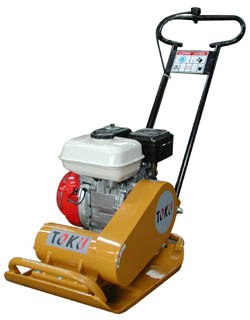

TKP-60

Technical Specifications:
Base Plate Diameter (LxW) (mm): 520x360
Exciter Speed (rpm): 5000
Travel Speed: (m/min): Up to 28
Grade Ability (Deg): 25
Centrifugal Force (kn): 12
Min. Compaction Depth (cm): 20
Engine: Honda GX160
Engine Type: Air-Cooled Gasoline
Max. Output (hp/rpm): 5/4000
Starting System: Recoil
Weight (kg): 60

TKL-80

Technical Specifications:
Base Plate Diameter (LxW) (mm): 520x432
Exciter Speed (rpm): 5200
Travel Speed: (m/min): Up to 20
Grade Ability (Deg): Up to 15
Centrifugal Force (kn): 12
Min. Compaction Depth (cm): 20
Engine: Robin EY-20D
Engine Type: Air-Cooled Gasoline
Max. Output (hp/rpm): 5/4000
Starting System: Recoil
Weight (kg): 78

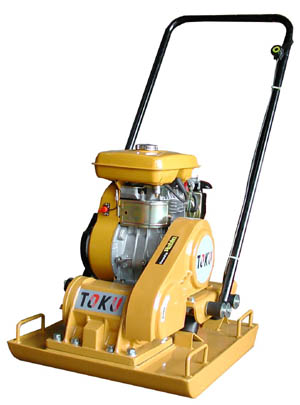

TKP-90

Technical Specifications:
Base Plate Diameter (LxW) (mm): 550x505
Exciter Speed (rpm): 5200
Travel Speed: (m/min): Up to 25
Grade Ability (Deg): Up to 23
Centrifugal Force (kn): 16.3
Min. Compaction Depth (cm): 25
Engine: Robin EY-20D
Engine Type: Air-Cooled Gasoline
Max. Output (hp/rpm): 5/4000
Starting System: Recoil
Weight (kg): 90

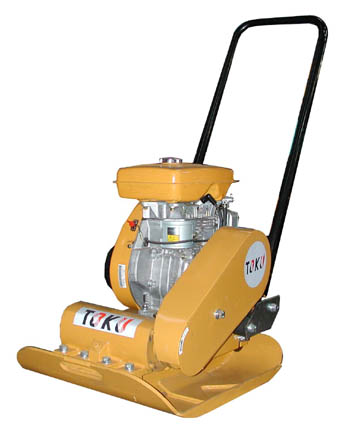

TKP-110

Technical Specifications:
Base Plate Diameter (LxW) (mm): 660x525
Exciter Speed (rpm): 6100
Travel Speed: (m/min): Up to 30
Grade Ability (Deg): 25
Centrifugal Force (kn): 22
Min. Compaction Depth (cm): 30
Engine: Robin EY-28D
Engine Type: Air-Cooled Gasoline
Max. Output (hp/rpm): 8.0/3600
Starting System: Recoil
Weight (kg): 110

TKC-350
TKC-450

TKC-350

Technical Specifications:
Blade Size (inch): 12-16
Driving Method: Manual
Max. Cutting Dept (mm): 150
Dept Adjustment Method: Manual Screw Lifting System
Water Tank Capacity (Litres): 25
Engine: Honda GX-270
Engine Type: Air-Cooled Gasoline
Max. Output (hp/rpm): 9.0/4000
Engine Starting System: Recoil
Dimensions (mm): 1530x600x960
Weight (kg): 100

TKC-450

Technical Specifications:
Blade Size (inch): 16-18
Driving Method: Manual
Max. Cutting Dept (mm): 165
Dept Adjustment Method: Manual Screw Lifting System
Water Tank Capacity (Litres): 33
Engine: Honda GX-390
Engine Type: Air-Cooled Gasoline
Max. Output (hp/rpm): 11.0/3600
Engine Starting System: Recoil
Dimensions (mm): 1040x600x920
Weight (kg): 132

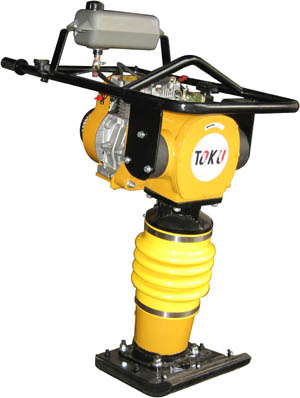

TK-72B

TK-72B

Technical Specifications:
Engine: Robin EH-12D
Max. Output ( HP/rpm): 3.8/4000
Fuel: Gasoline
Shoe Size (LxW)(mm): 330x280
Blow/Min (vpm): 630-700
Fuel Tank Capacity (Liters): 2.0
Fuel Consumption (Liters/hour): 1.1
Travel Speed (m/min): 9-10
Impact Force (kgf): 1400-1600
Dimensions (mm): 760x410x1045
Weight (kg): 72

Straight Pipe Wrench
RapidGrip Wrench
End Pipe Wrench
Rapewrench
Heavy Duty Offset Pipe Wrench
Aluminium Straight Pipe Wrench
Aluminium RapidGrip
Aluminium End Pipe Wrench
Chain Wrenches
Strap Wrenches
Hexagonal Wrenches
Basin Wrenches

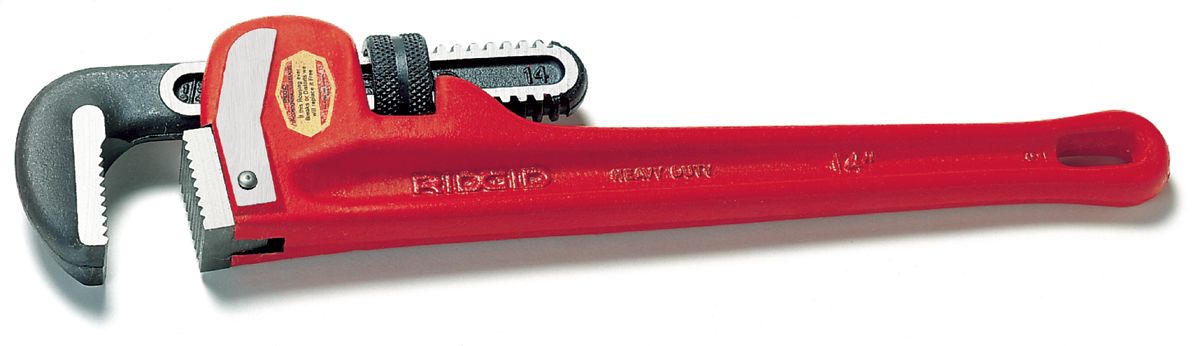

Straight Pipe Wrench

Sturdy, cast-iron housing and I-beam handle with full floating forged hook jaw, featuring self-cleaning threads with replaceable hook and heel jaws.

Heavy-duty pipe wrenches comply with federal specifications GGG-W65IE, Type ll, Class A.

Sizes: 10", 12", 14", 18", 24", 36", 48"

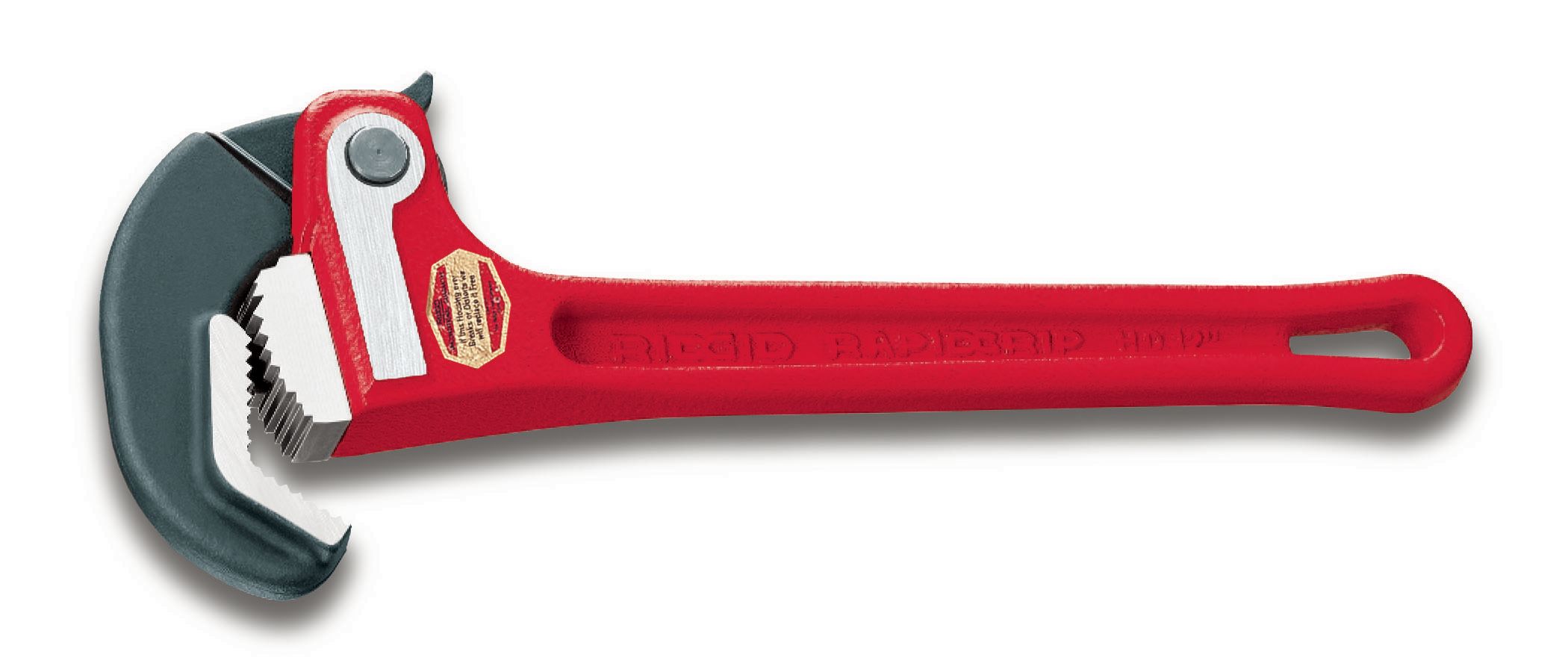

RapidGrip Wrench

Quick one-handed operation makes your jobs move faster.

The spring-loaded jaw design provides rapid ratcheting action.

Unique combination heel/hook jaw design aggressively bites the work piece and ensures a secure grip.

Sizes: 14"

End Pipe Wrench

Assures a fast and easy grip for pipe working in restricted spaces or close to a wall.

Provides a faster, easier way to get a grip and long handle swing.

Ideal for pipe work close to a wall, in tight quarters or in closely-spaced parallel lines.

Sizes: 10", 12", 14", 18", 24"

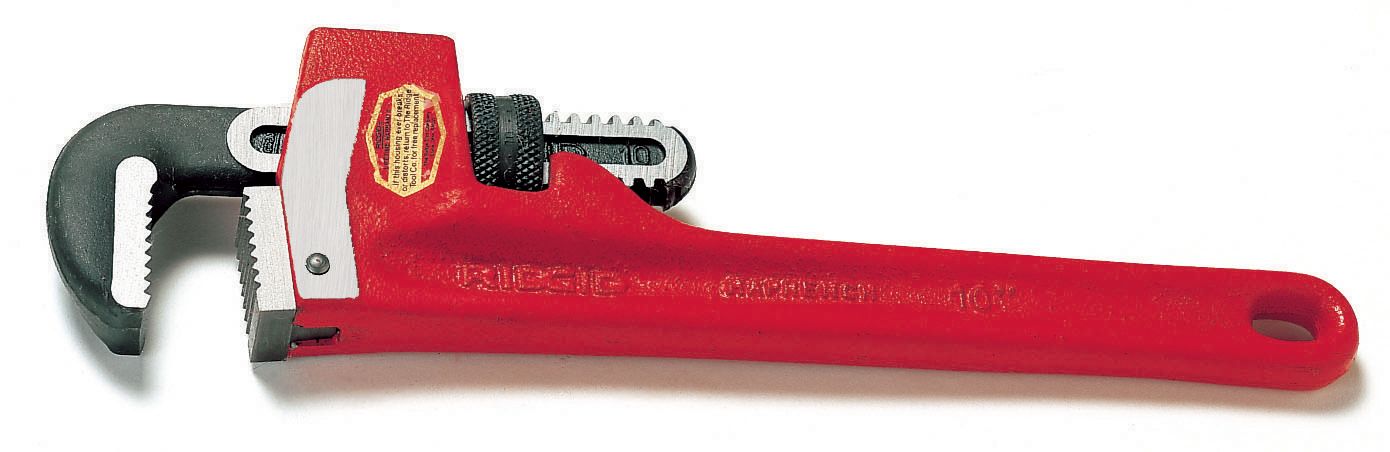

Rapewrench

A deeper and broader hook jaw housing provides a smooth, flat surface that is ideal for occasional use as a hammer.

Offers all of the same outstanding qualities found in all RIDGID heavy-duty wrenches.

Sizes: 10"

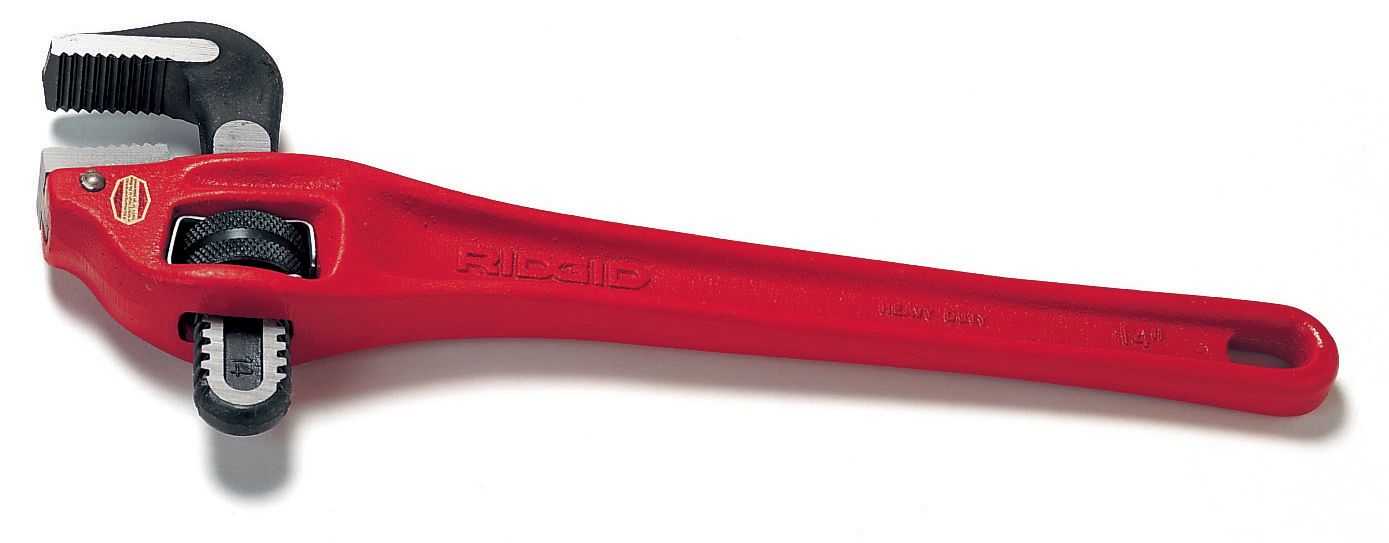

Heavy Duty Offset Pipe Wrench

Features a jaw opening parallel to the handle and a narrower hook jaw head.

Provides easy entry into tight spots.

Sizes: 14", 18"

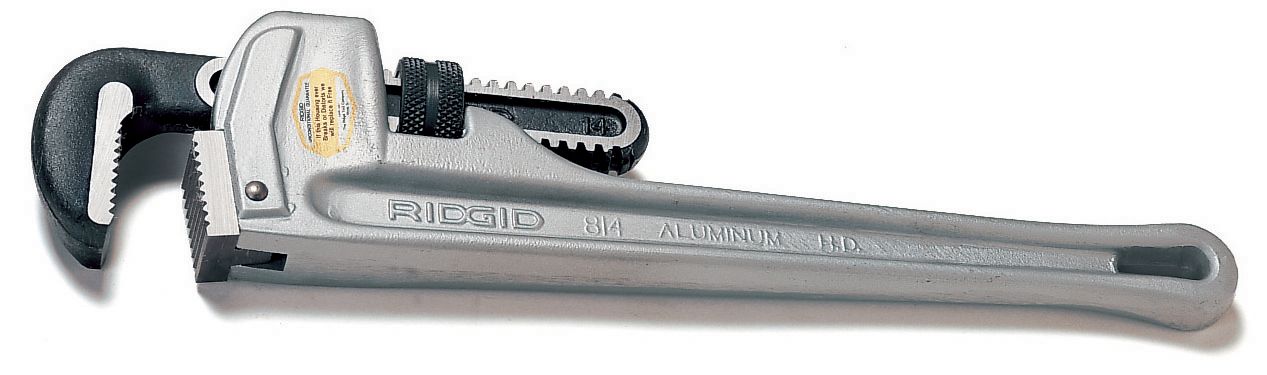

Aluminium Straight Pipe Wrench

Professional strength in lightweight aluminum.

Offers the same durability and ease-of-use found in all RIDGID heavy-duty wrenches.

Sizes: 14", 18"

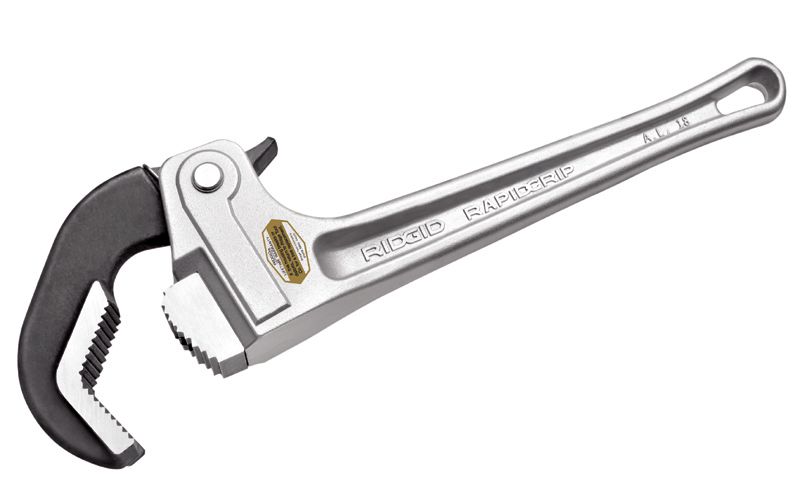

Aluminium RapidGrip

All the great benefits of the heavy-duty RapidGrip.

35% lighter than heavy-duty models.

Ideal for overhead applications.

Sizes: 14", 18"

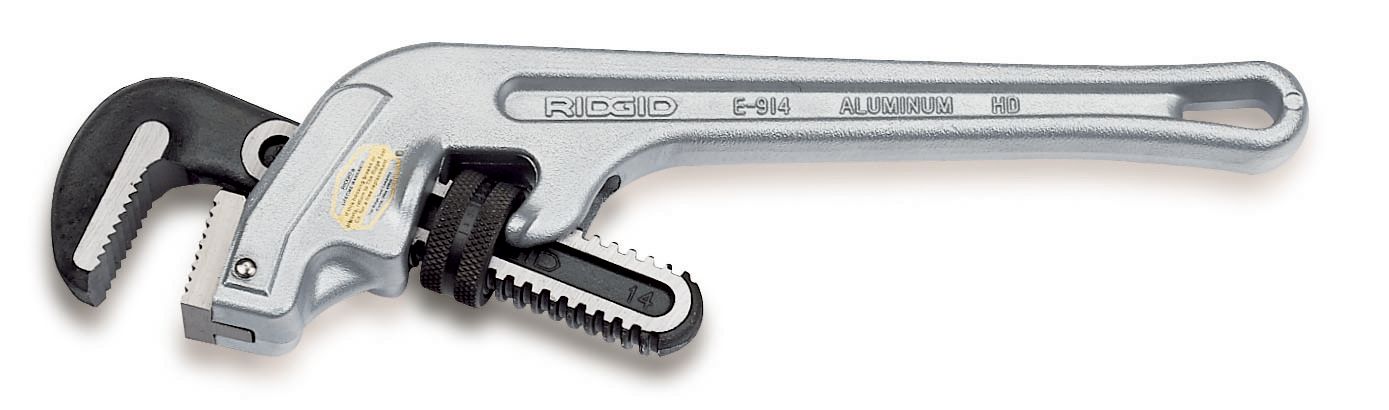

Aluminium End Pipe Wrench

Features:

- Ideal for jobs in close quarters and overhead applications.
- Designed for easy access in close parallel lines.
- 40% lighter than heavy-duty wrenches.
- Sizes: 14"

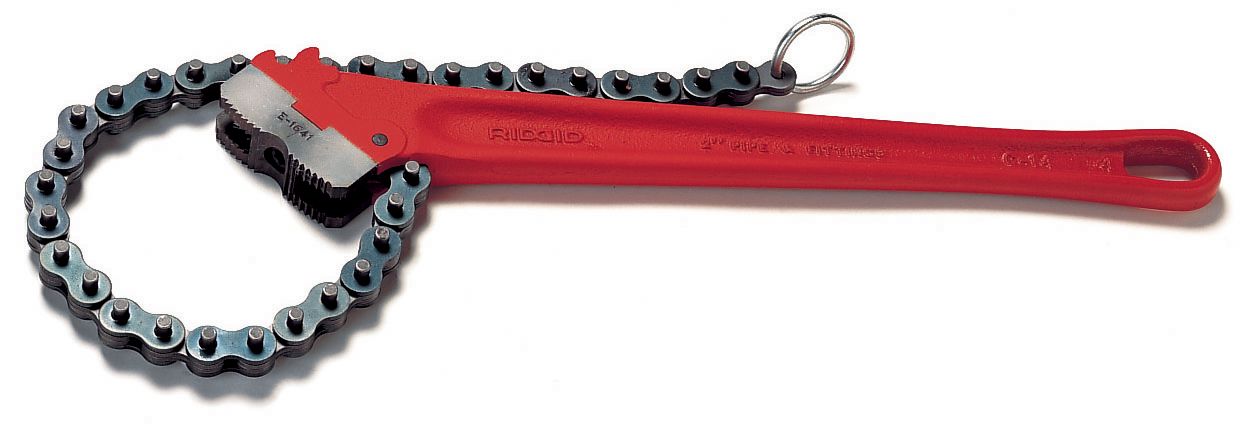

Chain Wrenches

A double fast jaw gives fast, ratchet-like action in either direction.

The heavy-duty model has replaceable alloy steel jaws.

The light-duty model has a one-piece forged alloy steel handle and jaw. Ideal for use in close quarters.

Sizes: 12", 14", 18", 24"

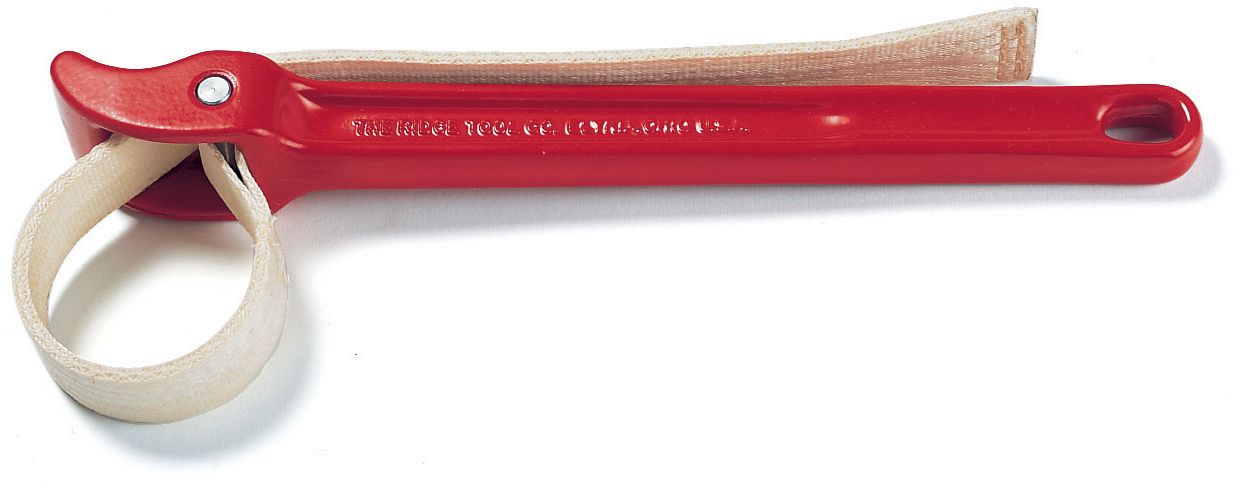

Strap Wrenches

Best for polished pipe.

Strong, woven nylon strap gives tight grip.

Two models available for plastic pipe.

Polyurethane-coated strap.

Sizes: 12"

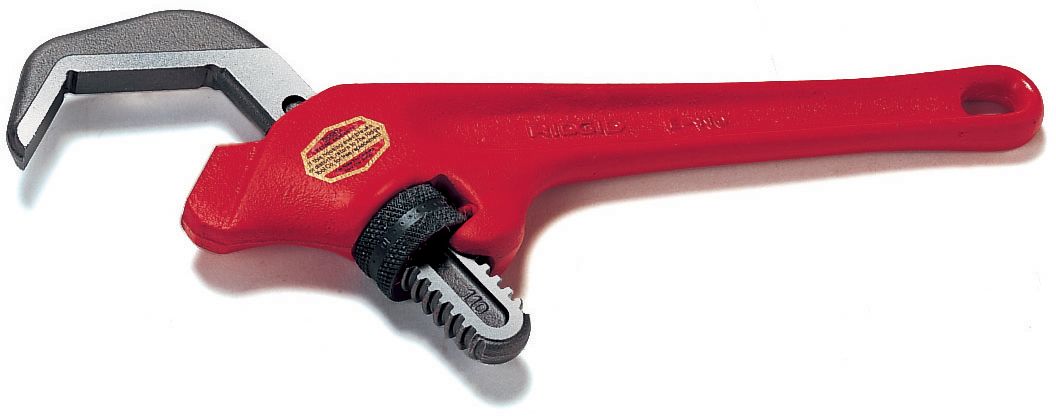

Hexagonal Wrenches

Hex jaw design gives multi-sided, secure grip on all hex nuts, square nuts, unions and valve packing nuts.

The extra-wide opening offset model is ideal for securing drain nuts on sinks and tubs.

Thin, smooth jaws slip into the tightest places.

Sizes: 17"

Basin Wrenches

Spring-loaded jaws of forged alloy steel provide fast, one-hand ratcheting.

Tension plug holds head in any position up to 90° angle.

Telescopic shanks on Model 1017 quickly adjust for lengths from 10" to 17".

Sizes: 10" (Model 1010) & 10" to 17" (Model 1017)

Heavy-Duty Pipe Cutters
Soil Pipe Cutters

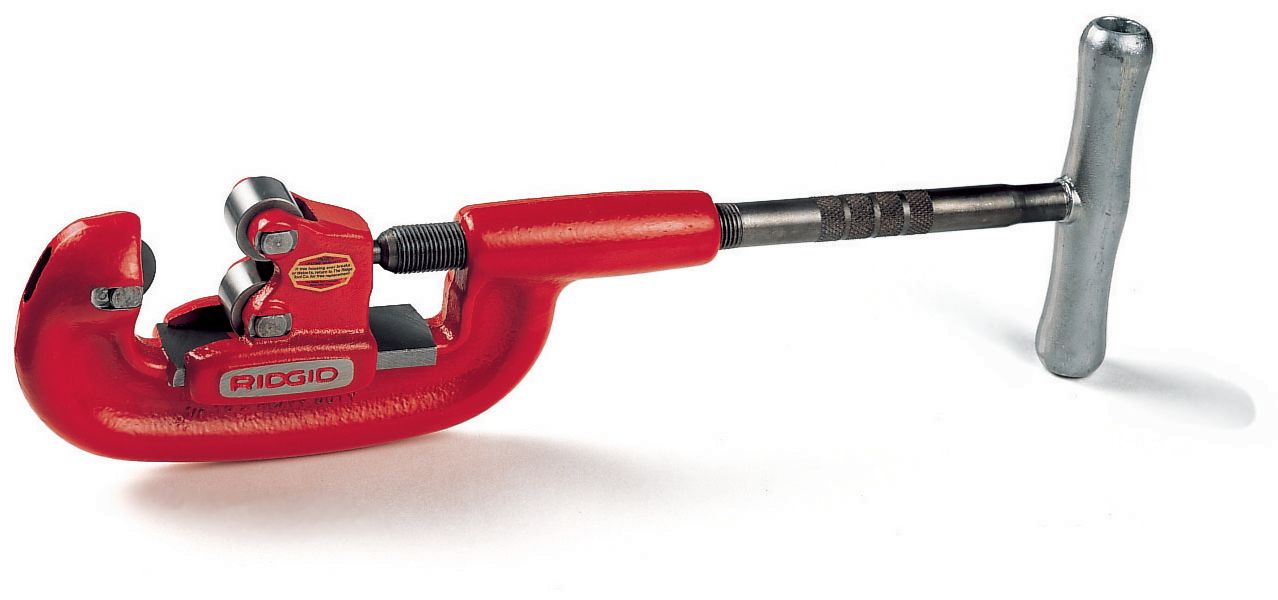

Heavy-Duty Pipe Cutters

Fast, clean pipe cutting by hand or power.

Extra-long shank protects adjustment threads, while an extra-large handle is provided for quick, easy adjustment.

Can be converted to 3-wheel cutter by replacing rollers with cutter wheel, or the 2A and 4S can be ordered as 3-wheel model for use in areas where a complete turn is not possible.

Second handle on 3-S, 4-S and 6-S makes two-man leverage possible on large pipe sizes.

Models Available: 1-A & 2-A with capacities of 1 1/4" & 2" respectively.

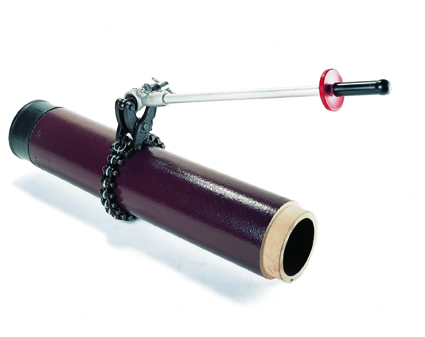

Soil Pipe Cutters

Features:

- Cuts 1 1/2"-6" clay, cast-iron or cement pipe and 4" class 22 water main.
- Ratchet action handle paralle to pipe allows for application in minimum width trenches.
- Complete with hand guard to protect operator's knuckles when cutting.
- Model Available: No. 246

Model 425 Portable Tristand Chain Vise
RJ-99 Roller Head Pipe Stand

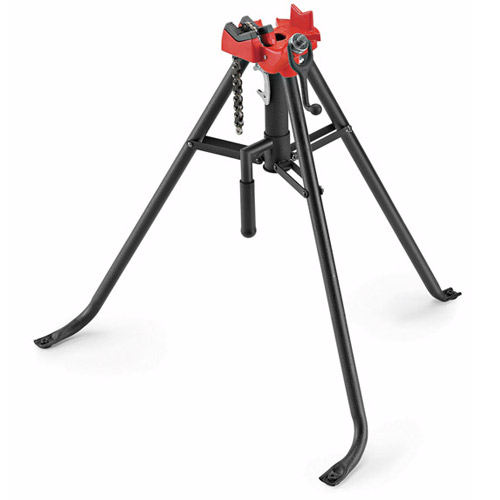

Model 425 Portable Tristand Chain Vise

Technical Specifications:

Max Pipe Capacity: 1/8-2 1/2 in (3-60mm)
Weight: 14.5Kg

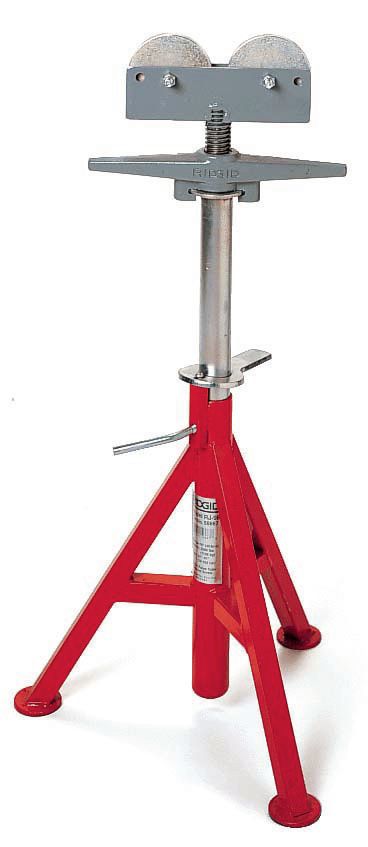

RJ-99 Roller Head Pipe Stand

Technical Specifications:

Height Adjustment (Low-High): 82-140cm
Max Pipe Capacity: 12 in
Max Weight Capacity: 454Kg
Weight: 12.3Kg

11R Manual Threader
690 Power Drive
Compact 300
Model 300AA
1224 Threading Machine
Thread Cutting Oil

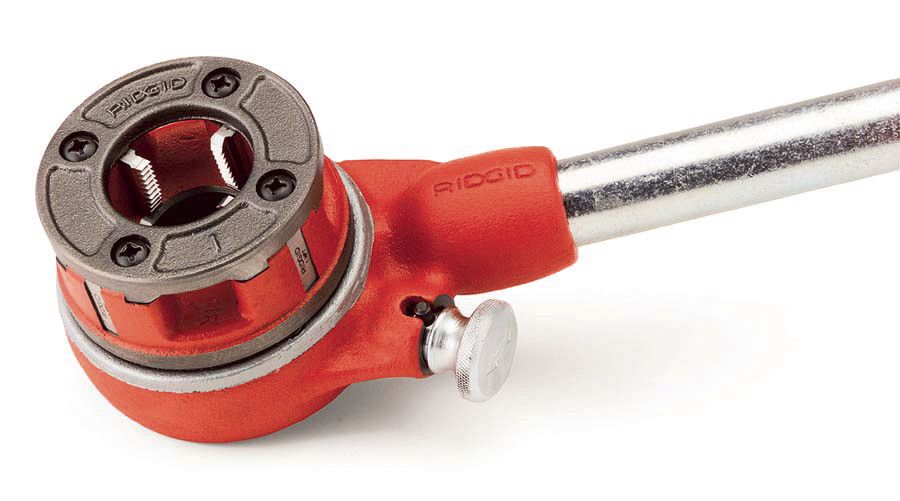

11R Manual Threader

Specifications

No 11-R capactiy: 1/8" -1 1/4"

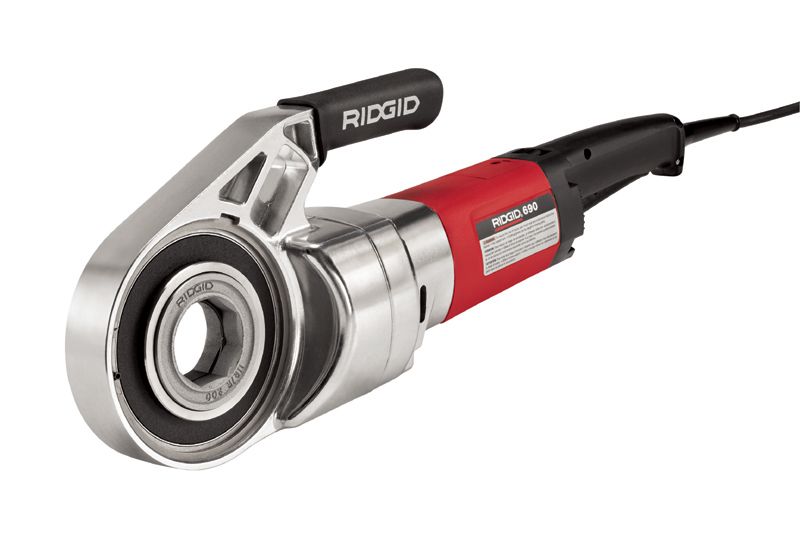

690 Power Drive

The 690 Power Drive is a new lightweight and powerful hand-held power drive. It is designed for threading 1/8" - 2" pipe with the use of 11-R Die Heads. The 690 comes equipped with a full set of 11-R Die Heads, 1/2" - 2", the 691 Support Arm and a durable Carrying Case. The 690 Power Drive is the perfect lightweight and portable power drive for maintenance and repair workers, as well as service plumbers requiring 2" pipe capacity.

Specifications

	Capacity:	1/8" - 2" (3 - 51 mm) pipe.
	Weight:	19 lbs. (8.6 kg), Power Drive Only.
	Length:	24 in. (61 cm).
	Motor:	Universal 1020 Watt, 230V, 50Hz.

	Switch:	Heavy-duty paddle switch with safety lock-off device (automatically locks off when released). Separate FORWARD/RELEASE switch.
	Gear Head:	Spur gear reduction/face gear drive. All shafts, ball and needle bearing mounted. Permanently lubricated gear housing.
	Gear Housing:	Die cast aluminum.
	Body & Handle:	Durable, heavy-duty, fiberglass-reinforced, industrial plastic.
	Spindle Speed:	32 RPM.
	Die Heads:	1/2", 3/4", 1”, 1 1/4", 1 1/2", 2" (type 11-R).
	Support Arm:	No. 691.
	Die Head Adapter:	Used with 1/8” through 1 1/4" die heads.
	Carrying Case

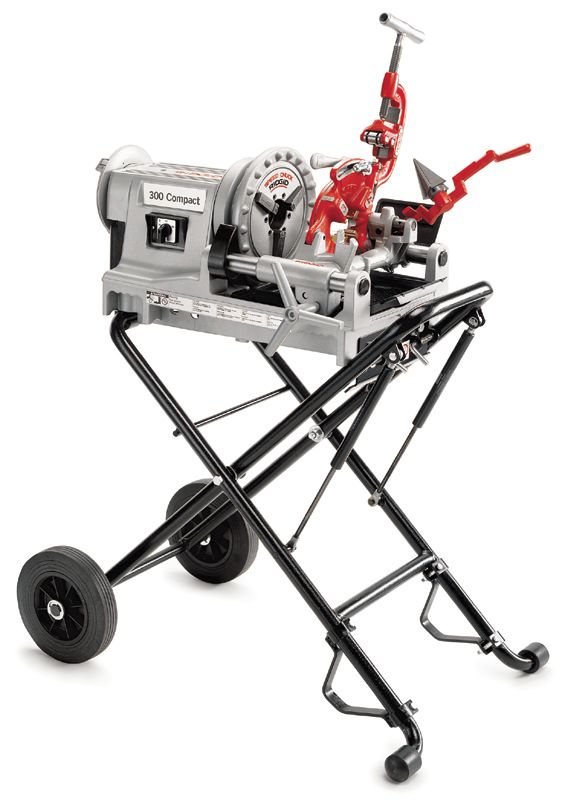

Compact 300

Specifications

	Pipe Capacity:	1/8" - 2" (3mm-50mm).
	Bolt Capacity:	Bolt: 1/4" - 2" (6mm-50mm).
	Motor:	1/2 HP, 230V universal 50 Hz.
	Motor Control:	Heavy duty rotary FOR/OFF/REV with integral foot switch.
	Spindle Speed:	38 RPM (52 RPM available).
	Chuck:	Hammer-type with replaceable, rocker-action jaw inserts.
	Oiling System:	Through-the-head, with integral oil reservoir. Self-priming, constant-flow, gerotor pump.
	Cutter:	Model 360, roll-type cutoff, self-centering, full-floating.
	Reamer:	Model 344, 1/8"-2", five flute cone, right hand only.

Standard Equipment

	One No. 811A Quick-opening die head.
	One Set 1/2" - 3/4" Alloy Universal Dies.
	One Set 1"- 2" Alloy Universal Dies
	One No. 360 Cutter with E-1032 Cutter Wheel.
	One No. 344 Reamer.
	One Gallon Nu-Clear Threading Cutting Oil.

Model 300AA

Features

	RIDGID speed chuck.
	Reversible 1/2 HP universal motor.
	Capacity: 1/8"-2" (3mm-50mm) pipe, 2 1/4"-4" with 141, and 4"-6" with 161 Geared Threaders; 1/4"-2" (6mm-50mm) rod.
	Recessed On/Off/Reverse switch.
	230V, 38 RPM approved by CSA to CSA and UL standards.
	Convert a 300 Power Drive to a portable threading machine.
	Ideal for use with RIDGID roll groovers

Specifications

	Motor:	1/2 HP, universal, reversible motor, single-phase, 50/60 Hz, 230V.
	Switch:	Heavy-duty FOR/OFF/REV and Integral Foot Switch.
	Chuck:	RIDGID speed chuck with replaceable rocker-action jaws.
	Spindle Speed:	38 RPM (57 RPM available).
	Rear Centering Device:	Cam-action turns with chuck.
	Support Bar:	Heavy-duty (2).

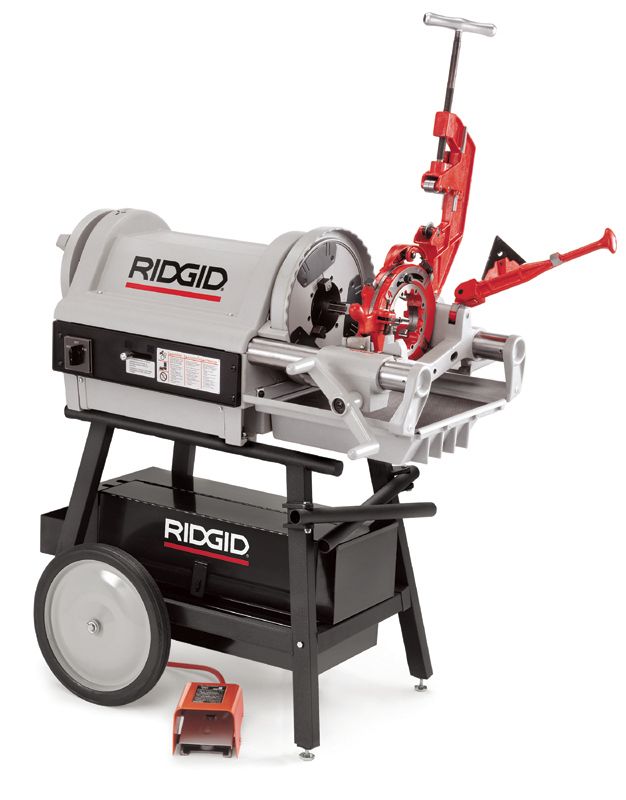

1224 Threading Machine

Specifications

	Pipe Capacity:	1/4"-4" (6mm-100mm) 4"-6" (100mm-150mm) with 161 Geared Threader.
	Bolt Capacity:	1/4"-2" (6mm-50mm).
	Motor:	1 1/2 HP, single-phase, 50 Hz, induction type.
	Motor Control:	Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch.
	Spindle Speed:	36/12 RPM.
	Gear Box:	Two-speed gear box 3:1 ratio.
	Chuck:	Hammer-type with replaceable rocker-action jaw inserts.
	Rear Centering Device:	Cam action.
	Cutter:	Model 764 full-floating, self-centering 1/4"-4" with F-229 cutter wheel.
	Reamer:	Model 744, 1/4"-4" blade-type.
	Oiling:
	Pump:	Self-priming, gerotor-type, automatic-reversing, constant-flow.

Standard Equipment
Model No. 1224 threading machine with foot switch.

	One No. 714 (914) 2 1/2"- 4" receding self-opening die head.
	One No. 711 (911) 1/4"- 2" universal self-opening die head.
	One set 1/2"- 3/4" universal alloy dies.
	One set 1" - 2" universal alloy dies.
	One set 2 1/2"- 4" 1224 high-speed dies.
	One No. 764 cutter.
	One No. 744 reamer.
	One spare F-229 cutter wheel.
	One gallon Nu-Clear oil.
	Three hex keys.
	One 3/4" combination wrench.
	One tool box.

Thread Cutting Oil

RIDGID thread cutting oils are free of chlorine and other halogens, PCBs and heavy metals. Complete material safety data sheet available.

Clear mineral oil with low odor and anti-mist formulation. Special low temperature properties maintain workable viscosity to -20°F.

975 Combo Roll Groover
918-I Roll Groover

975 Combo Roll Groover

The new, Model 975 Combo Roll Groover is two tools in one! Like other RIDGID® groovers, the 975 mounts on the RIDGID 300 Power Drive for machine grooving jobs, but it is also designed to manually groove
in-place pipe.

Auto Tracking And Depth Setting Gauge Means Easier Use
The 975 Combo Roll Groover includes a patented auto tracking technology for significantly easier grooving. Whether you’re doing machine or manual grooving, auto tracking keeps the pipe automatically engaged to the groover throughout the grooving process. The 975 also comes with a permanently-fixed depth setting gauge for quicker, repeatable set-up.

Less Hand Force
Compared to competitive units, the 975 has a 55% higher gear reduction requiring less hand-force for manual grooving. This is especially helpful for overhead grooving.

Durability And Portability
A tough, ductile iron construction means the 975 can absorb job site abuse and provide accurate grooves time after time. And its cast-in handle makes the 975 easily portable to and from the job site.

Specifications

	Pipe Capacity:	1-1/4" – 6" Schedule 10 and Schedule 40 Steel, Aluminum, and PVC Pipe; 1-1/4" – 6" Schedule 10, 11/4" – 2" Schedule 40 Stainless Steel Pipe, 1-1/2" – 4" Schedule 80 PVC Pipe; With Roll Change 2" – 8" Copper Tube (Type K, L, M, and DWV)
	Depth Adjustment:	Adjusting screw and integral, index depth gauge
	Actuation:	Feed screw with 1/2" ratchet wrench (included) or any 15/16" hex
	Power Drive Mounting:	RIDGID 300 Power Drive 38/57 RPM (Reverse Direction Only)
	Weight:	26 lbs.

918-I Roll Groover

The RIDGID Model 918-I Roll Grooving Machine is capable of grooving 1" to 8" schedule 40 and 1" to 12" schedule 10 pipe faster than any roll grooving machine in its class. Powered by a 1.2 HP universal motor and heavy duty transmission, the 918-I produces high quality grooves consistently and effortlessly.

The 918-I comes standard with a rugged wheel stand built for mobility in the shop without compromising stability. The stand’s tray is tough enough to support 200 lbs.

The 918-I uses a custom-designed, two-stage hydraulic pump that minimizes pipe flare, operator fatigue and hydraulic fluid leaks.

Specifications

	Capacity:
	– 1"- 12" Schedule 10 steel.
	– 1"- 8" Schedule 40 steel.
	– 2"- 6" copper (Types K, L, M, DWV).
	– 2 1/2"- 6" Schedule 80 PVC.
	Weight:	185 lbs./84.1 kg.
	Motor:	Universal 1/2 HP, 230V, 50 Hz.
	Motor Control:	On/Off Heavy-Duty with Foot Switch.
	RPM:	45 (no load).

Standard Equipment

	One 2"-6" Schedule 10/40 Roll Set.
	One 8"-12" Schedule 10 (8" Schedule 40) Roll Set.
	One Tools for Roll Set Changeout.
	One Carry Case for Roll Sets.
	One Heavy-Duty Wheel Stand with Tray.
	One Foot Switch.
	One 1"–12" Stabilizer for Grooving Nipples.

Quick Acting Tubing Cutters
Constant Swing Cutters
Hole Cutting Tools
Hole Saw Kits

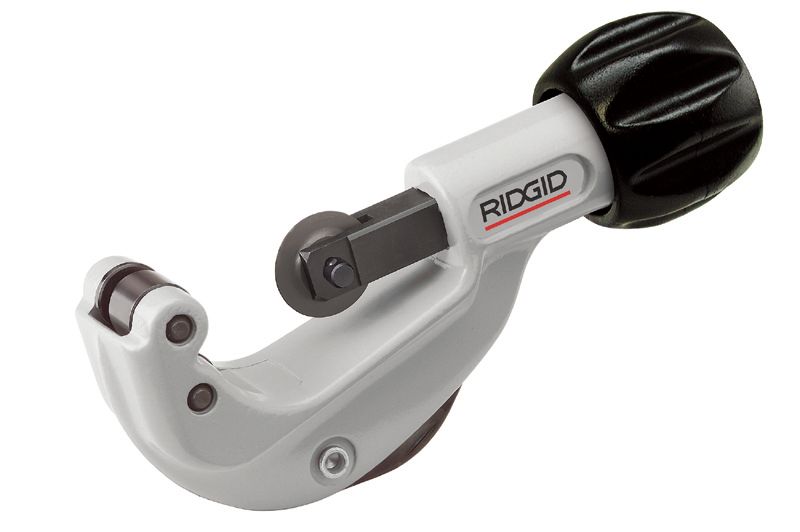

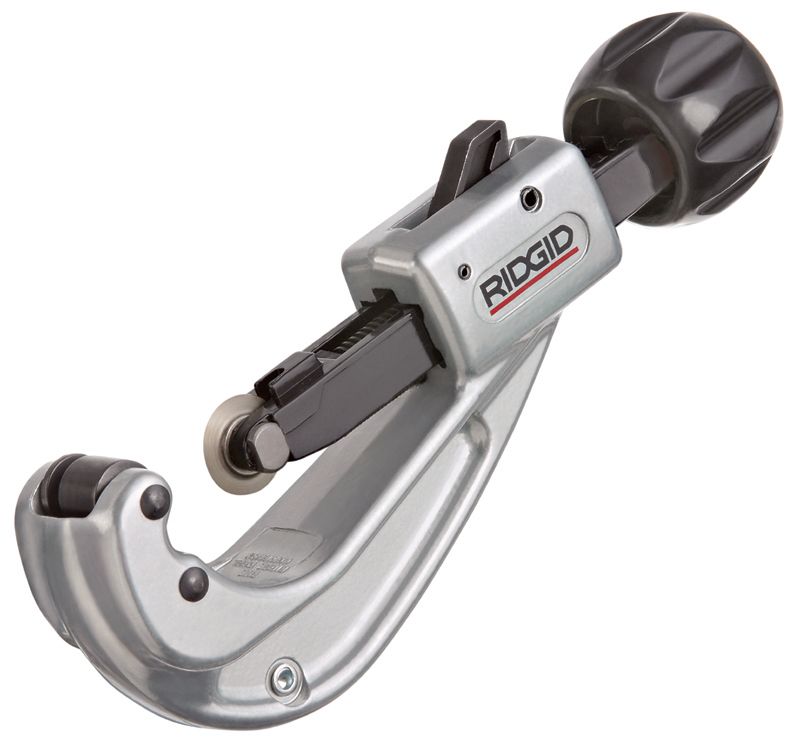

Quick Acting Tubing Cutters

Models 151-156 feature a quick-acting design, I-beam construction, hardened wear surfaces and thrust bearing slide assemblies for smooth operation.

All Models now include an X-CEL® Knob and X-CEL Pin for quicker cutting and wheel replacement.

These cutters are available in models for plastic pipe or metallic tubing.

Models 151 and 152 feature fold-away reamers.

Constant Swing Cutters

Telescoping feed screw design keeps the cutter at the same length regardless of tubing diameter – good for tight spaces.

Features an enclosed feed screw to eliminate clogging and jamming, grooved rollers for close-to-flare cuts, and a fold-away reamer.

Now includes X-CEL® knob and X-CEL Pin for quicker cutting and wheel replacement.

Made from high-strength zinc alloy.

Spare cutter wheel included in the knob.

Cuts copper, brass, and aluminum tubing and thin-wall conduit.

Hole Cutting Tools

Technical Specifications:

Model: HC-300
Capacity: Up to 3"

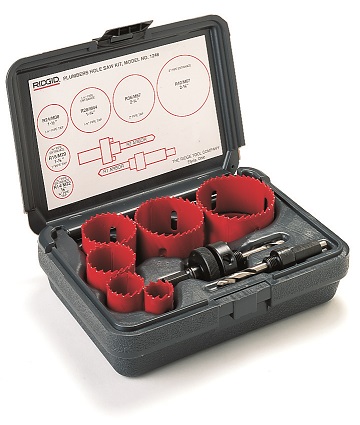

Hole Saw Kits

Plumber's kit.

General purpose kit.

Model 370 Lever Bender

Model 370 Lever Bender

Features:

- Designed for bending copper, aluminium, coated and stainless steel pipe and tubing up to maximum of 180°.
- Can be used by hand, mounted in a vice.
- Supplied in metal case complete with formers and slides.
- 12, 15, 18 & 22mm.

PB-28 Power Bender

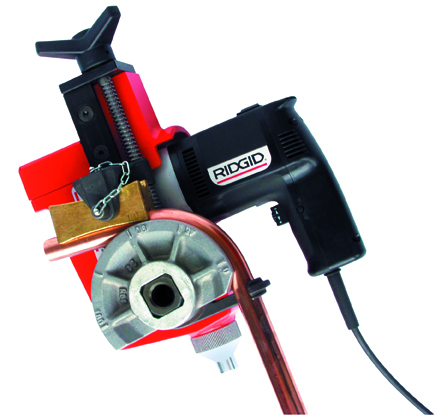

PB-28 Power Bender

Features:

- Designed to bend copper (soft as well as hard) and stainless steel with a bending angle from 0 to 180° for tube diameters of 12 mm to 28 mm.
- Also equipped to bend multilayer and steel pipes.
- Powerful 400 W motor.
- Only weighs 7,5 kg, easy portable and installable by one person.
- Supplied in metal case.

Tube capacity:

Copper: 12 - 28 mm.
304 L stainless steel (≤ 1,5 mm thickness): 12 - 28 mm.
Gas pipe: 1/4”- 3/4”.
Multilayer: ≤ 30 mm.

RC-1625
RC-2375
Model 1491

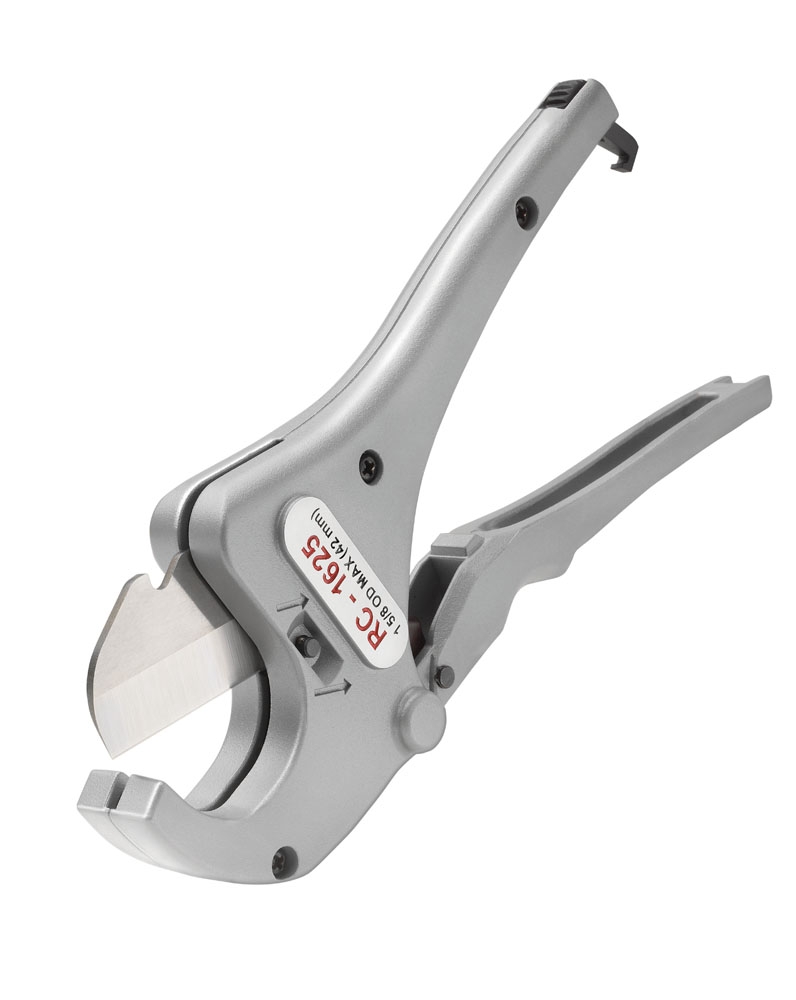

RC-1625

RC-1625 Ratcheting Plastic Pipe & Tubing Cutter:

The New Model RC-1625 Ratcheting Plastic Pipe and Tubing Cutter expands RIDGID's product offering for plastic pipe specific tools. The advanced blade design combined with the ratcheting mechanism, work together to reduce the amount of hand force needed to cut through hard plastic material.

A quick-change blade pin enables the user to change blades in a matter of seconds without tools, saving valuable time and increasing productivity. This pin also assures that there will be no lost clips or misplaced screws during a blade change.

With a 1 5/8" (42 mm) O.D. capacity, the RC-1625 easily cuts plastic pipe and tubing such as PVC and CPVC, as well as PEX, polyethylene, polybutylene and rubber hose.

Features:

	Durable aluminum construction for heavy duty use
	Ergonomic grips on bottom handle are spaced at 1/2" increments to act as a quick pipe measuring scale
	Easy turn-thumb latch for reliable storage
	X-CEL® Quick Change Blade
	Large 1 5/8" (42 mm) O.D. Capacity
	Burrless cutting operation provides a square cut

Specifications:

	Capacity:	12 - 42mm
	Weight:	0.52 kg

RC-2375

RC-2375 Large Diameter Ratcheting Plastic Pipe & Tubing Cutter:

The New Model RC-2375 Large Diameter Ratcheting Plastic Pipe and Tubing Cutter expands RIDGID®’s product offering for plastic pipe specific tools. The advanced blade design combined with the ratcheting mechanism, work together to reduce the amount of hand force needed to cut through hard plastic material.

A quick-change blade pin enables the user to change blades in a matter of seconds without tools, saving valuable time and increasing productivity. This pin also assures that there will be no lost clips or misplaced screws during a blade change.

With a 23/8" (63 mm) O.D. capacity, the RC-2375 easily cuts plastic pipe and tubing such as PVC and CPVC, as well as PEX, polyethylene, polybutylene and rubber hose.

Features:

	Durable aluminum construction for heavy duty use
	Ergonomic grips on bottom handle are spaced at 1/2" increments to act as a quick pipe measuring scale
	Easy turn-thumb latch for reliable storage
	X-CEL® quick change blade
	Large 2 3/8" (63 mm) O.D. capacity
	Burrless cutting operation provides a square cut

Specifications:

	Capacity:	12 - 63mm
	Weight:	0.8 kg

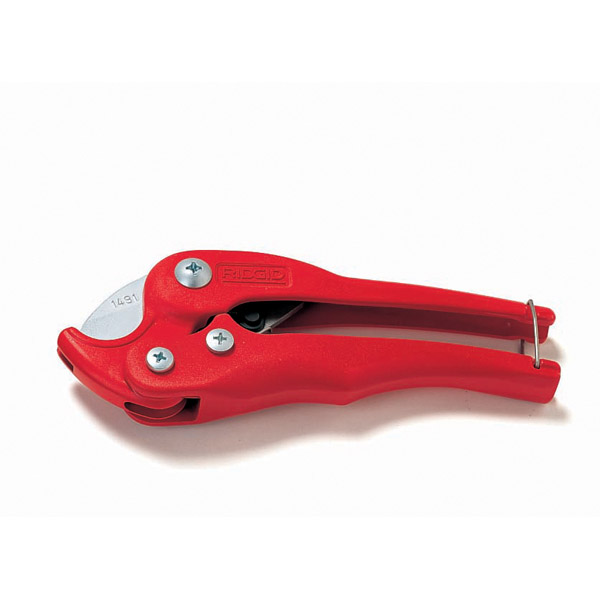

Model 1491

Model 1491 Ratchet Plastic Tube and Pipe Cutter:

Specifications:

	Capacity:	3 - 27mm
	Weight:	0.3 kg

RP 210-B Press Tool
Jaws for Pressing Machines

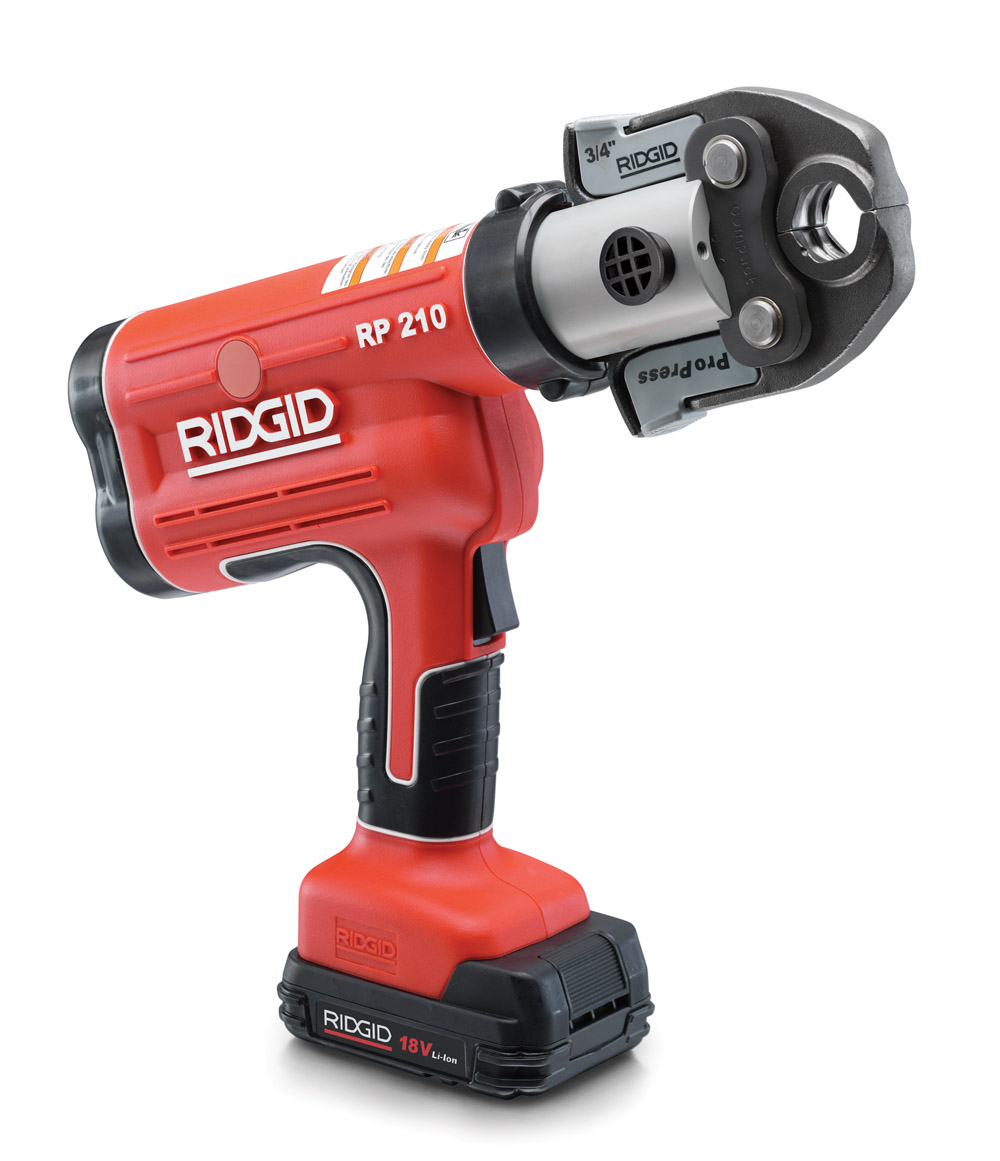

RP 210-B Press Tool

Say "hello" to your little friend! RIDGID® introduces the ultimate in press tool technology: the RP 210-B. For a fast and reliable way to join copper, stainless steel and PEX, the new RP 210-B has more capacity than any compact press tool on the market. This model is 2 inches shorter and 25% lighter than our previous compact tool and features the longest service interval available (32,000 cycles), an improved swiveling barrel and a powerful 18V Lithium-Ion battery. Now you can do more… with less!

Choose the company that introduced America to press technology. Choose RIDGID.

Specifications

	Capacity:	1/2" – 1 1/4" (Copper & Stainless Steel), 3/8" - 11/2" (PEX)
	270° Barrel/Jaw Swivel
	Battery:	18V Li-Ion 1.1Ah
	Weight:	6.4 lbs. with Battery
	Battery Charger:	115V
	Hydraulic Ram Output:	5,400 lbs. (24kN)
	Operating Temperature Range:	15°F to 122°F
	Approximate Cycle Time:	5 seconds
	Compatible with all RIDGID® Compact Series Pressing Attachments
	Kit includes: RP 210-B Press Tool, (2) 1.1 Ah Batteries, Li-Ion Battery Charger and Carrying Case

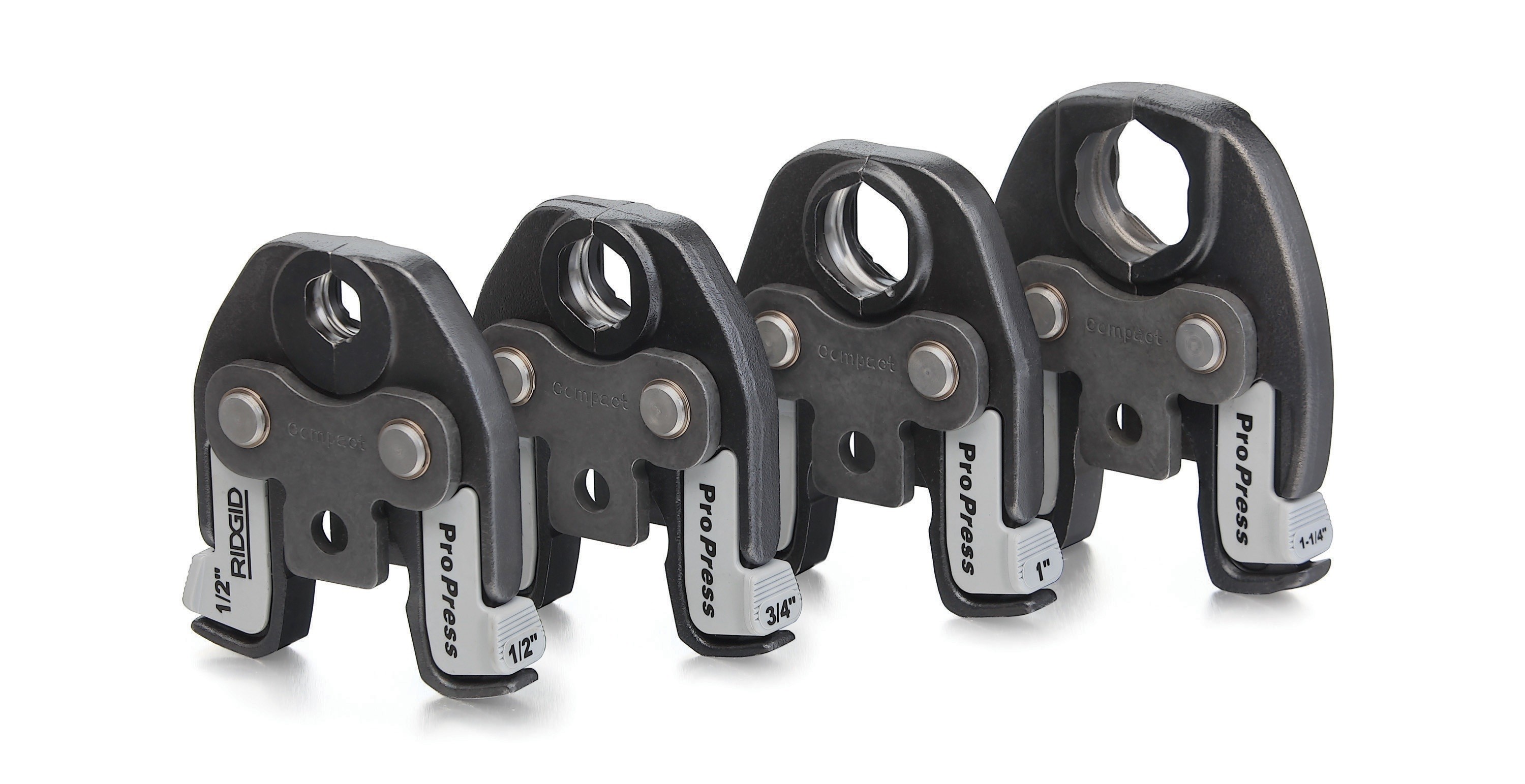

Jaws for Pressing Machines

For Use With RP 210-B and 100-B Press Tools

HE 300 MF
HE 300 MF With Push Button
HE 500 MF Single Rope
HE 500 MF Double Rope
HE 500 TF
HE 500 TF With Push Button
HE 800 TF
Trestle for Hoists

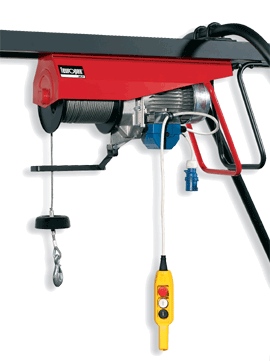

HE 300 MF

Model	HE 300 MF
Motor type	Monophase
Voltage	220 V
Frequency	50 Hz
Engine power	1100 W
Max. lifting capacity	300 Kg
Cable length	40 m
Lifting speed	23 m/min
Steel cable diameter	6 mm
Hoist weight	48 Kg
Dimensions	mm 860 x 320 x 530 h
Max. cable length	40 m

HE 300 MF With Push Button

Model	HE 300 MF
Motor type	Monophase
Voltage	220 V
Frequency	50 Hz
Engine power	1100 W
Max. lifting capacity	300 Kg
Cable length	40 m
Lifting speed	23 m/min
Steel cable diameter	6 mm
Hoist weight	48 Kg
Dimensions	mm 860 x 320 x 530 h
Max. cable length	40 m

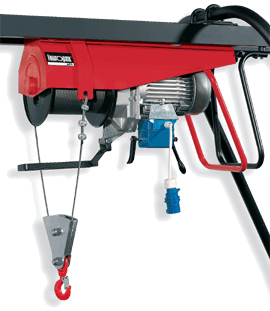

HE 500 MF Single Rope

Model	HE 500 MF
Motor type	Monophase
Voltage	220 V
Frequency	50 Hz
Engine power	1500 W
Max. lifting capacity	500 Kg
Cable length	25 m
Lifting speed	11.5 m/min
Steel cable diameter	6 mm
Hoist weight	60 Kg
Dimensions	mm 860 x 320 x 530 h
Max. cable length	40 m

HE 500 MF Double Rope

Model	HE 500 MF
Motor type	Monophase
Voltage	220 V
Frequency	50 Hz
Engine power	1100 W
Max. lifting capacity	500 Kg
Cable length	40 m
Lifting speed	11,5 m/min
Steel cable diameter	5 mm
Hoist weight	55 Kg
Dimensions	mm 860 x 320 x 550 h
Max. cable length	40 m

HE 500 TF

Model	HE 500 TF
Motor type	Threephase
Voltage	380 V
Frequency	50 Hz
Engine power	1850 W
Max. lifting capacity	500 Kg
Cable length	40 m
Lifting speed	29 m/min
Steel cable diameter	7 mm
Hoist weight	50 Kg
Dimensions	mm 860 x 320 x 530 h
Max. cable length	40 m

HE 500 TF With Push Button

Model	HE 500 TF
Motor type	Threephase
Voltage	380 V
Frequency	50 Hz
Engine power	1850 W
Max. lifting capacity	500 Kg
Cable length	40 m
Lifting speed	29 m/min
Steel cable diameter	7 mm
Hoist weight	50 Kg
Dimensions	mm 860 x 320 x 530 h
Max. cable length	40 m

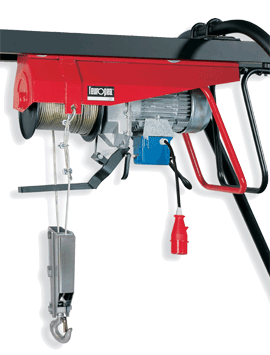

HE 800 TF

Model	HE 800 TF-TD
Motor type	Threephase
Voltage	380 V
Frequency	50 Hz
Engine power	1850 W
Max. lifting capacity	800 Kg
Cable length	40 m
Lifting speed	14,5 m/min
Steel cable diameter	6 mm
Hoist weight	60 Kg
Dimensions	mm 860 x 320 x 570 h
Max. cable length	40 m

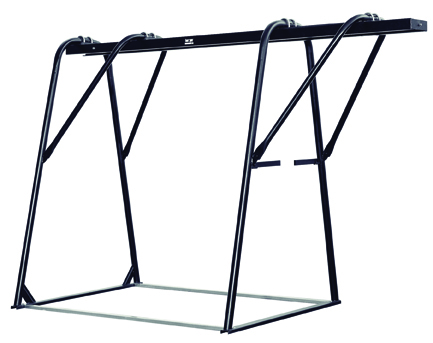

Trestle for Hoists

Trestle with basket and bucket included.

Builder's Hoist
Mast Climbing Work Platforms

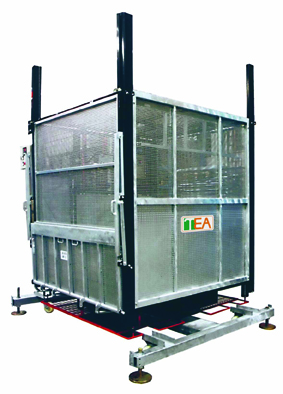

Builder's Hoist

1 to 1.5 tons, for materials and persons.

Mast Climbing Work Platforms

1.5 to 3.4 tons, single mast or twin mast.

SMO-S1000
SMO-S2000
SMO-S3000
SMO-S5000
SMT-S1000
SMT-S2000
SMT-S3000
SMT-S5000

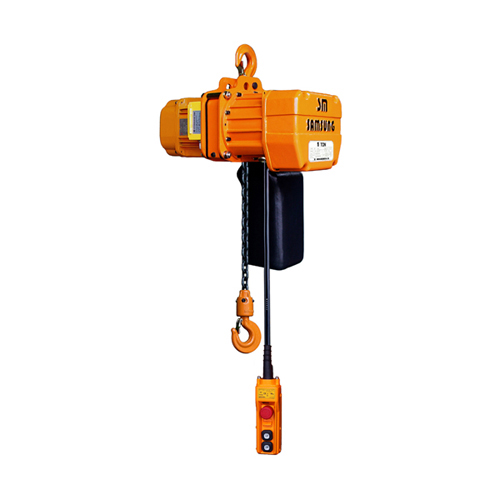

SMO-S1000

Capacity: 1 Ton
Chain Length: 8 m
Type: 2 way (Up & Down)

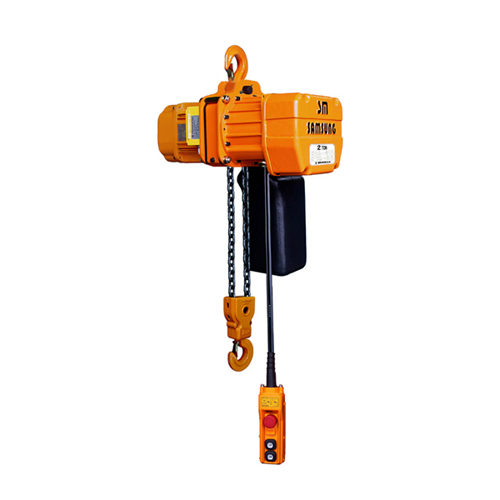

SMO-S2000

Capacity: 2 Tons
Chain Length: 8 m
Type: 2 way (Up & Down)

SMO-S3000

Capacity: 3 Tons
Chain Length: 8 m
Type: 2 way (Up & Down)

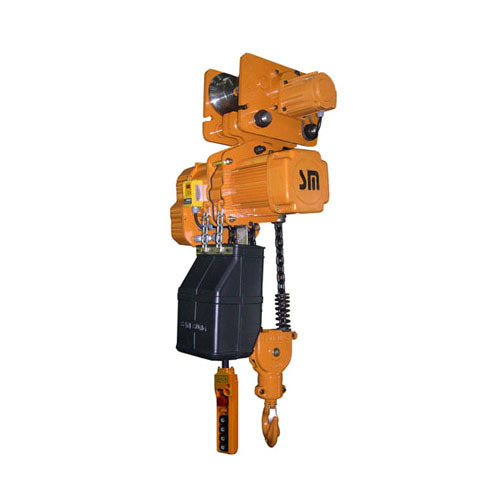

SMO-S5000

Capacity: 5 Tons
Chain Length: 8 m
Type: 2 way (Up & Down)

SMT-S1000

Capacity: 1 Ton
Chain Length: 8 m
Type: 4 way (Up & Down, Right & Left)

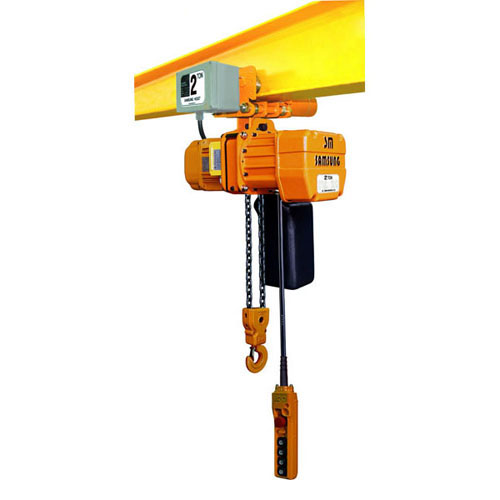

SMT-S2000

Capacity: 2 Tons
Chain Length: 8 m
Type: 4 way (Up & Down, Right & Left)

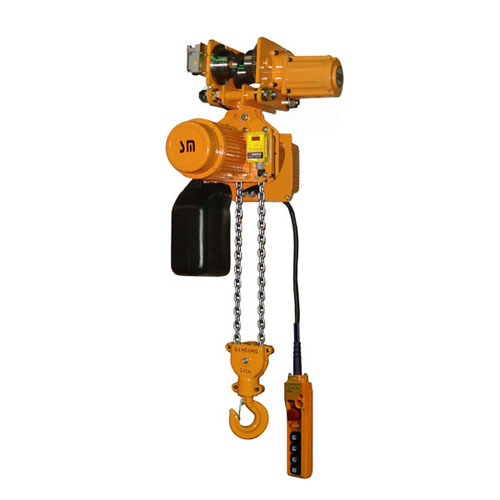

SMT-S3000

Capacity: 3 Tons
Chain Length: 8 m
Type: 4 way (Up & Down, Right & Left)

SMT-S5000

Capacity: 5 Tons
Chain Length: 8 m
Type: 4 way (Up & Down, Right & Left)

TP 32/36 Combined Machine
TP 40/46 Combined Machine
P42T Bending Machine
P52T Bending Machine
C-42 Bar Cutter
C-52 Bar Cutter
C45 Hydraulic Cutting Machine

TP 32/36 Combined Machine

Bending Capacity: Ø 34mm for 65Kg/mm²
Ø 30mm for 85Kg/mm²
Cutting Capacity: Ø 28mm for 65Kg/mm²
Ø 26mm for 85Kg/mm²
Electric Motor (Hp/Kw): 4/ 3
Voltage: 400V, 3Ph
Machine RPM: 9
Oil Viscosity/ Capacity: Grade120/ 9Kg
Weight (kg): 400
Dimensions LxWxH (cm): 90x100x100

TP 40/46 Combined Machine

Bending Capacity: Ø 40mm for 65Kg/mm²
Ø 34mm for 85Kg/mm²
Cutting Capacity: Ø 32mm for 65Kg/mm²
Ø 30mm for 85Kg/mm²
Electric Motor (Hp/Kw): 5.5/ 4
Voltage: 400V, 3Ph
Machine RPM: 6
Oil Viscosity/ Capacity: Grade120/ 13Kg
Weight (kg): 700
Dimensions LxWxH (cm): 104x122x90

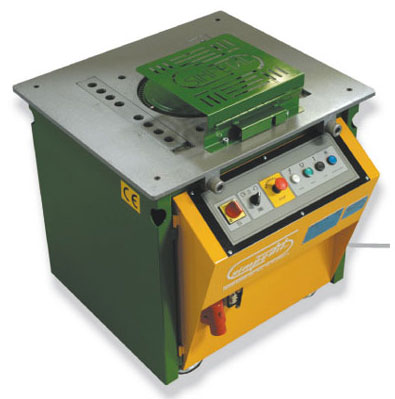

P42T Bending Machine

The P42, like all other SIMPEDIL bending machines is compact and durable and allows the operator to work from both sides.

From P42 all subsequent bending machine have as standard equipment long sadles.

Technical Specifications:

Bending Capacity: Ø 36mm for 65Kg/mm2
Ø 34mm for 85Kg/mm2
Electric Motor: 4/3 HP/Kw
Voltage: 400V, 3Ph
Machine: 6 rpm
Oil quantity: 13 kg
Weight: 600 kg
Dimensions (LxWxH): 105x95x89 cm

P52T Bending Machine

Technical Specifications:

Power: 5.5HP, 4KW
Bending Capacity: 42mm

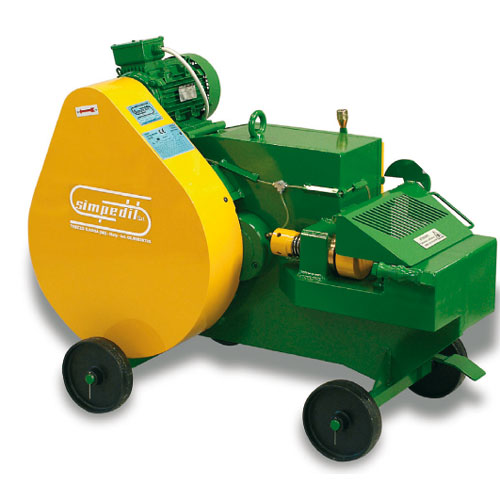

C-42 Bar Cutter

Technical Specifications:

Cutting Capacity: Ø 34mm for 65Kg/mm²
Ø 30mm for 85Kg/mm²
Electric Motor (Hp/Kw): 4/ 3
Voltage: 400V, 3Ph
Machine RPM: 90
Oil Viscosity/ Capacity: Grade120/ 4Kg
Weight (kg): 660
Dimensions (LxWxH) (cm): 118x71x87

C-52 Bar Cutter

Technical Specifications:

Cutting Capacity: Ø 44mm for 65Kg/mm²
Ø 36mm for 85Kg/mm²
Electric Motor (Hp/Kw): 5.5/ 4
Voltage: 400V, 3Ph
Machine RPM: 40
Oil Viscosity/ Capacity: Grade120/ 4Kg
Weight (kg): 730
Dimensions( LxWxH) (cm): 130x71x92

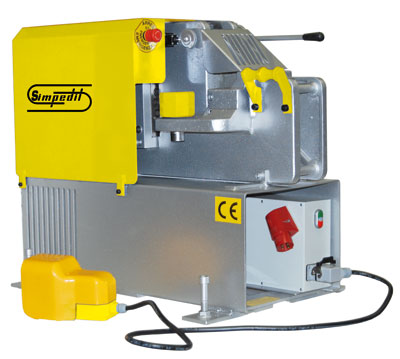

C45 Hydraulic Cutting Machine

Compared to mechanical cutting machine has several advantages:

- Total lack of maintenance;

- Increased security in case of emergency (with the cap opened the machine does not cut);

- Considerable versatility in different working environments (from hottest to coldest) simply by adapting the type of hydraulic oil.

Technical Specifications:

Cutting Capacity: Ø 34mm for 85Kg/mm2
Cutting height: 52 cm
Electric Motor: 5.5/4 Hp/Kw
Voltage: 400V, 3Ph
Machine: 30 rpm
Oil quantity: 20 kg
Weight: 380 kg
Dimensions (LxWxH): 97x60x80 cm

PC-6114
PC-7614V
PC-8116

PC-6114

Technical Specifications:

Model: PC-6114
Engine: 2-stroke
Displacement: 60.7 cm³
Power Rating: 3.2 kW (4.3 HP)
Fuel Tank Capacity: 0.7 l
Circumferential Speed: 80 m/s
Max Cutting Depth: 122 mm
Wheel Ø: 350 mm (14 ")
Arbor Ø: 25.4 mm
Weight (without blade, fuel, oil): 8.5 Kg

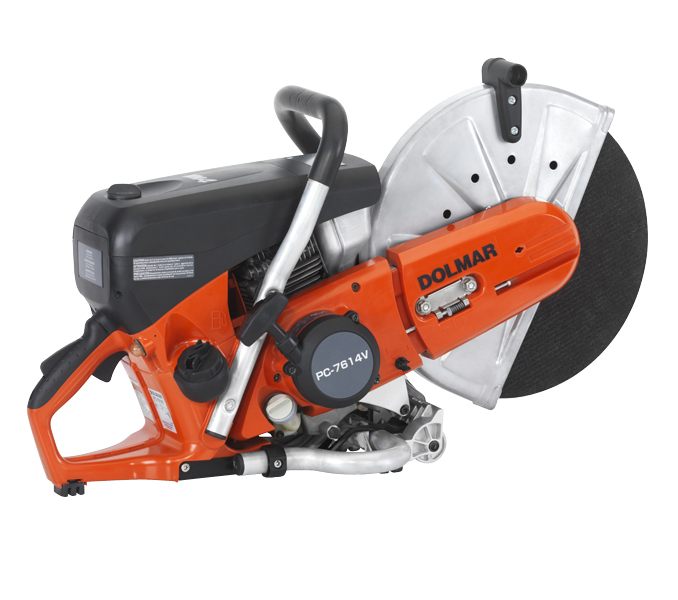

PC-7614V

Technical Specifications:

Model: PC-7614V
Engine: 4-stroke
Displacement: 75.6 cm³
Power Rating: 3.3 kW (4.5 HP)
Fuel Tank Capacity: 1.1 L
Fuel Consumption: 1.7 l/h
Max Cutting Depth: 116 mm
Wheel Ø: 350 mm (14 ")
Arbor Ø: 25.4 mm
Weight (without blade, fuel, oil): 11 kg

PC-8116

Technical Specifications:

Model: PC-8116
Engine: 2-stroke
Displacement: 81 cm³
Power Rating: 4.5 kW (6.2 HP)
Fuel Tank Capacity: 1.1 l
Max Cutting Depth: 147 mm
Wheel Ø: 400 mm (16 ")
Arbor Ø: 25.4 mm
Weight (without blade, fuel, oil): 10.6 kg

Minimax 100
Revolution 330
ITC 1200
ITC 1500
ITC 2000

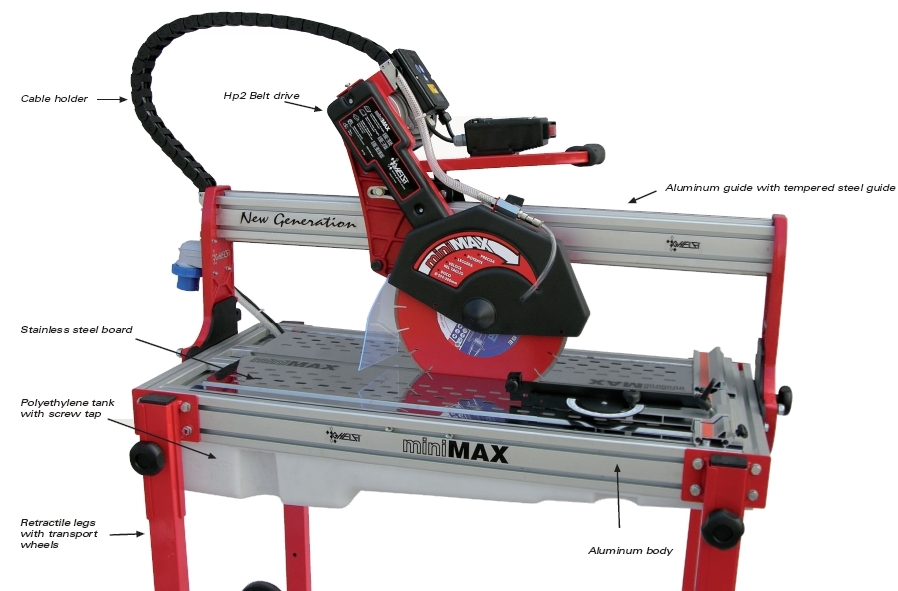

Minimax 100

Technical Specifications:

Voltage: 230V, 50Hz
Engine Power: 2Hp, (1.5Kw)
RPM: 2800
Blade Diameter: 250 & 300 mm
Max Length of Cut: 105 & 102 cm
Dimensions: 60x60 & 56x56 cm
Max Thickness: 8 & 11 cm
Weight: 58 Kg
Carton Dimensions: 145x65xh90

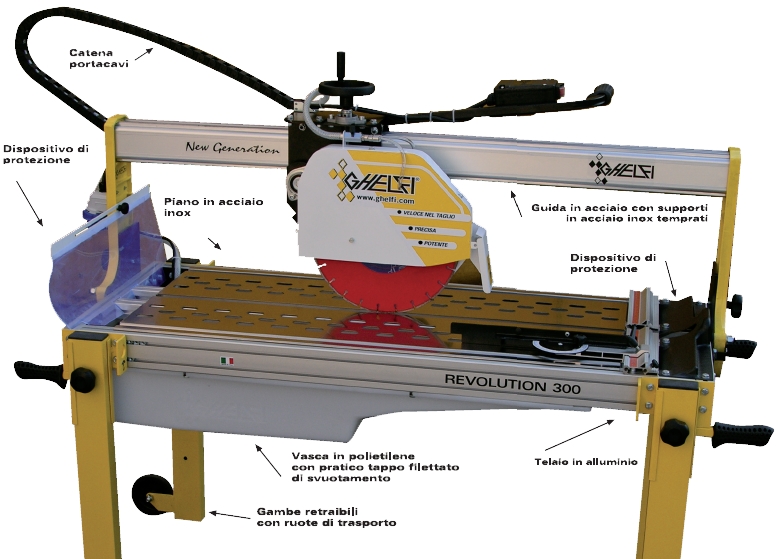

Revolution 330

Technical Specifications:

Voltage: 230V, 50Hz
Engine Power: 3Hp, (2.2Kw)
RPM: 2800
Blade Diameter: 300 or 350 mm
Max Length of Cut: 135 cm
Dimensions: 65 x 65 cm
Max Thickness: 7.5 cm
Weight: 105 Kg
Carton Dimensions: 180x62xh90

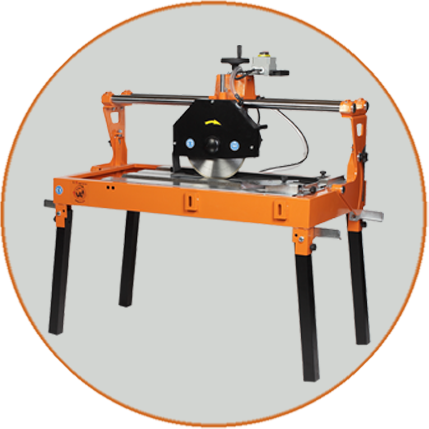

ITC 1200

Technical Specifications:

Pofile Height: 110mm
Blade Diameter: 300mm
Cutting Length: 1200mm
Voltage: 230V, 1Ph
Power: 2.2KW, 3HP
Rpm: 2800
Dimensions: 165x68x78 cm
Weight: 155Kg

ITC 1500

Technical Specifications:

Pofile Height: 110mm
Blade Diameter: 300mm
Cutting Length: 1500mm
Voltage: 230V, 1Ph
Power: 2.2KW, 3HP
Rpm: 2800
Dimensions: 192x68x78 cm
Weight: 180Kg

ITC 2000

Technical Specifications:

Length Of Cut: 200cm
Depth Of Cut: 11cm

Super Beton Evo
Super Asphalt Evo
Super Gres XT
MD 120C

Super Beton Evo

Very good value for money laser welded blade for intensive use on a wide range of construction materials (dry or wet cutting). Featuring patented DEPTH INDICATOR for blade life monitoring and indication of cutting direction (up to diameter 400mm).

Now with 12mm high segments.

Application: concrete, reinforced concrete and general building materials.

Sizes: 350mm, 400mm

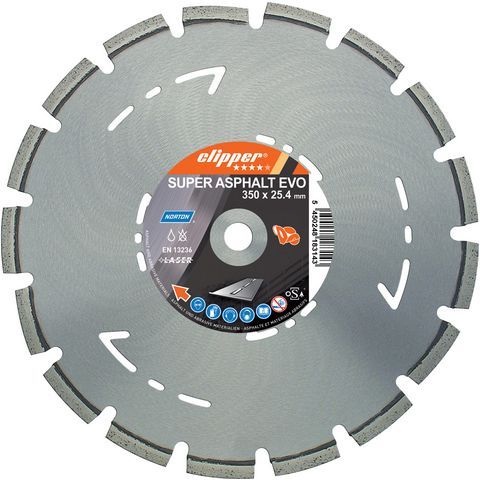

Super Asphalt Evo

Very good value for money laser welded blade for intensive use and LONG LIFE in Asphalt and abrasive materials (dry or wet cutting). Featuring patented DEPTH INDICATOR for blade life monitoring and indication of cutting direction (up to diameter 450mm).

Undercutting protection on the steel center thanks to slant segments.

Application: asphalt, asphalt over concrete, green concrete and abrasive building materials.

Sizes: 350mm, 400mm

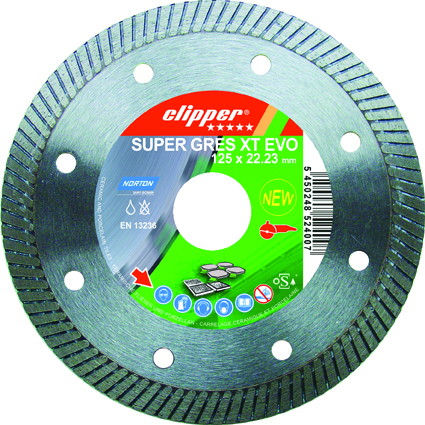

Super Gres XT

Excellent value for money turbo jet continuous rim diamond blade with an ultra thin steel centre for high speed dry or wet cutting, designed for low material wastage. For use with hand held electric machines and rail tile saws.

Application: porcelain, ceramic, vitrious, marble, terracota, granite, slate, reconstituted stone, floor and wall tiles.

Sizes: 200, 250, 300mm
